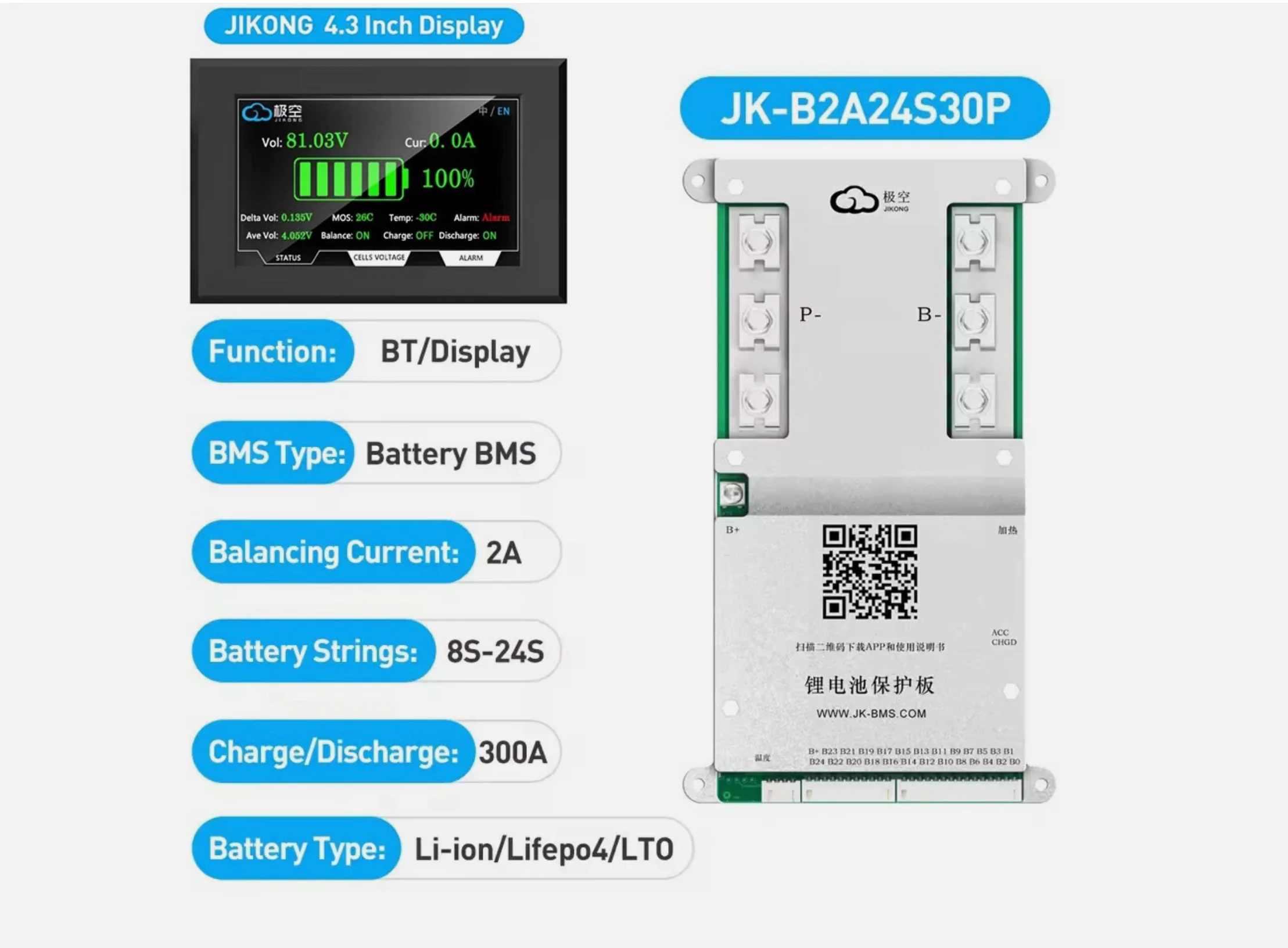

JK BMS B2A24S30P 7S-24S Active Balance BMS Balance Current 2A Continuous Current 300A Lifepo4 li-ion LTO Battery

JK BMS B2A24S30P - 7S-24S Active Balance Battery Management System

The JK BMS B2A24S30P is a cutting-edge Battery Management System (BMS) designed to optimise the performance and lifespan of your battery pack. Compatible with 7 to 24 series (7S-24S) LiFePO4, Li-ion, and LTO batteries, this BMS offers advanced active balancing capabilities to ensure that your battery cells operate at peak efficiency.

Key Features:

• Active Balance Technology: This BMS employs an innovative active balancing method to redistribute charge among cells, minimizing voltage discrepancies and enhancing overall performance.

• Balance Current: The system features a balance current of 2A, allowing for effective and quick equalization of cell voltages—ideal for maintaining the health of your battery pack under varying load conditions.

• Continuous Current Capability: With a continuous current rating of 300A, the JK BMS B2A24S30P is equipped to handle demanding applications, providing reliable power for electric vehicles, renewable energy storage systems, and more.

• Comprehensive Protection Features: Protects your battery pack from overcharging, over-discharging, short circuits, and cell temperature extremes, ensuring safety and longevity for your investment.

• User-Friendly Interface: Equipped with LED indicators and a straightforward setup process, this BMS allows for easy monitoring and management of your battery system, making it suitable for both DIY enthusiasts and professional use.

Additional Information:

● Number of Battery Strings:7S to 24S.
● Continuous Current:300A.
● Power supply mode:The battery pack is self-powered.
●Single cell voltage detection range:0-5V,error<10mV over full operating range,Typical error value<5mV.
● Support single cell voltage dropout detection.
● Balance current:2000mA,Active Balance(Full State On).
● Wiring method:same port.
● Short Circuit Protection:Support.
● Bluetooth Function:Bluetooth Built-in,Support for Android /IOS Phone.
● Temperature detection:-40～125℃.
● Total voltage detection Detection range:0-100V,<0.5%FSR(FSR=full scale).
●Current Sense Shunt:-150A~300A,Error<0.5%FSR.
●SoC estimation accuracy:Error<8%(operating conditions).
● Battery remaining capacity:error range is less than 8%
● Total Cycle AH Cumulative value is half of the charge/discharge value.
●Operating power consumption:<5mA(without communication)/15mA(485/CAN).
● Standby power consumption:<2mA.
●Operating Temperature:-40~85°C.
● Storing Temperature:-40～95℃.

Number of Battery Strings(Li-ion)	7S-24S
Number of Battery Strings(Lifepo4)	8S-24S
Number of Battery Strings(LTO)	12S-24S
Balance Method	Active Balance(Full State On)
Balance Current	2A
Conductive Resistance in Main Circuit	0.47mΩ
Continuous Charge Current	200A
Continuous Discharge Current	200A
Maximum Discharge Current(MAX 2min)	350A
Over Charge Protection Current(ADJ)	10-200A

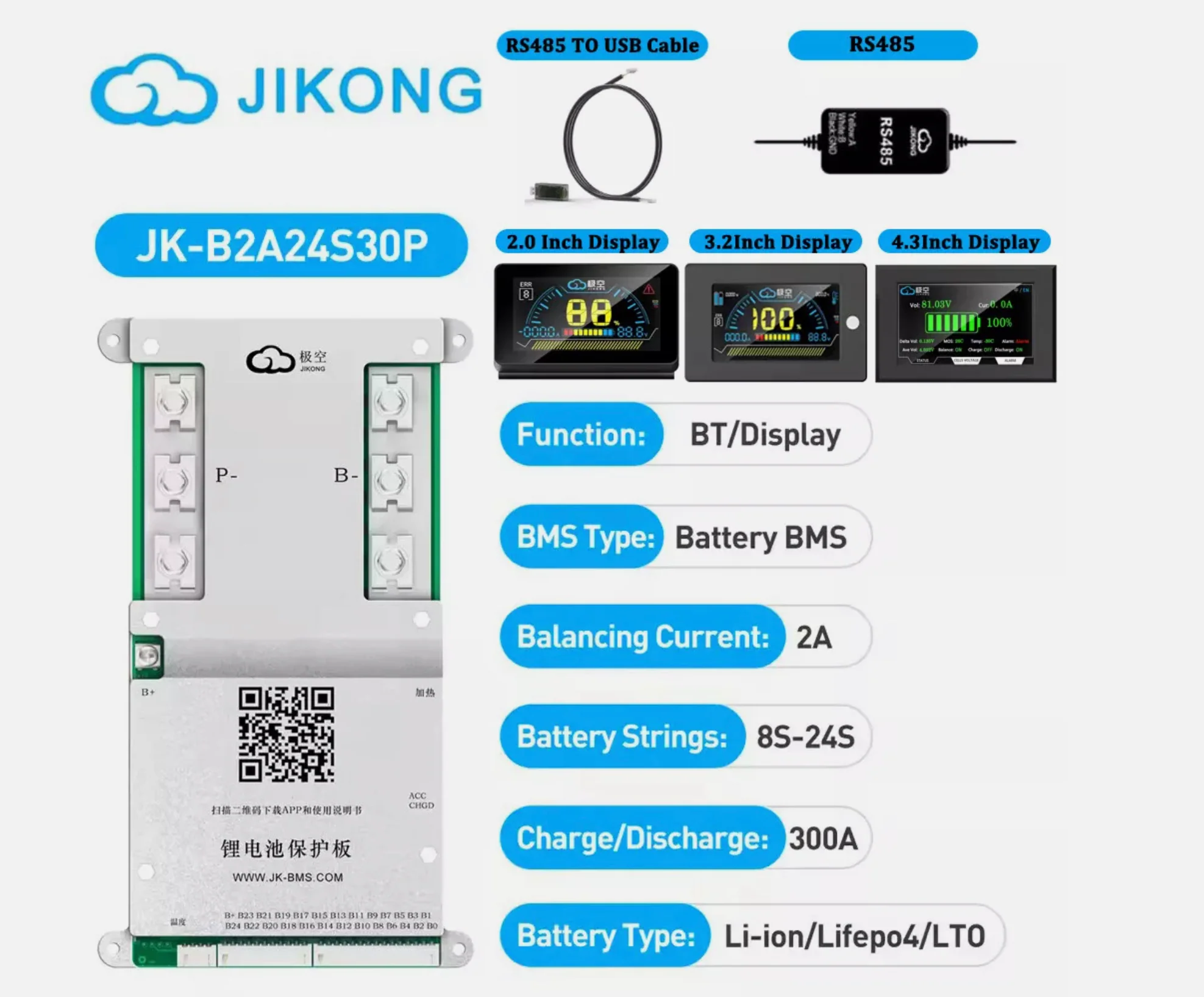

Other Interfaces(Default)	RS485
Other Interfaces (Customized)	CANBUS/HEAT

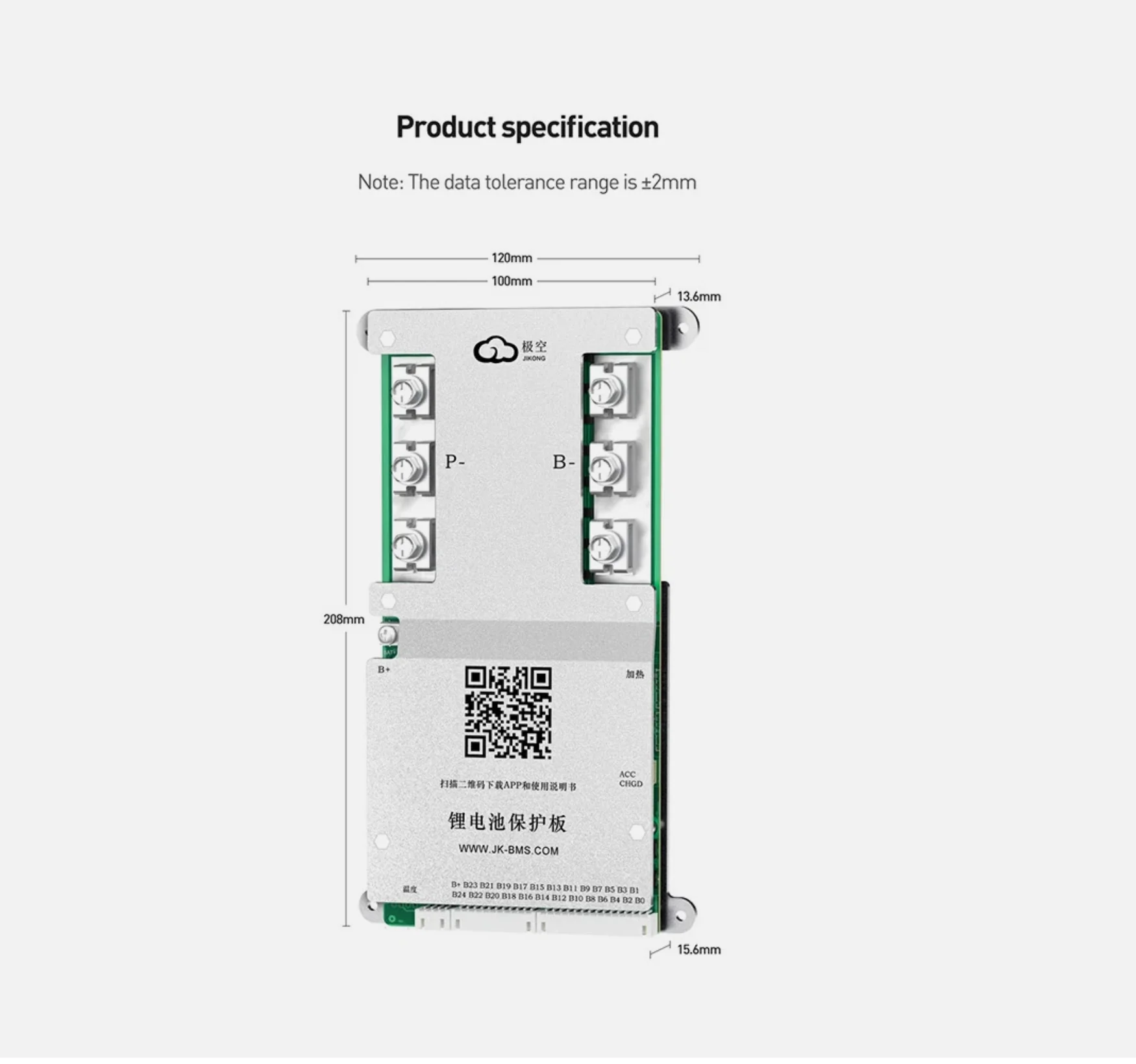

Size/mm	162*102*20mm
Wiring Output	Common Port
Single Cell Voltage Range	1-5V
Voltage Acquistion Accuracy	±5mV
Over Charge Protection Voltage	1.2-4.35V Adjustable
Over Charge Relese Voltage	1.2-4.35V Adjustable
Over Current Detect Delay	2~120S Adjustable
Over Discharge Protection Voltag	1.2-4.35V Adjustable
Over Discharge Relese Voltage	1.2-4.35V Adjustable
Quantity of Emperature Detection	3Pcs
Temp Protection	YES
Short Circuit Protection	YES
Coulomb Counter	YES
Bluetooth Function	Support for Android & IOS phone



Upgrade your battery management with the JK BMS B2A24S30P, where reliability meets innovation—perfect for anyone looking to maximise the performance of their LiFePO4, Li-ion, and LTO battery installations.

Warranty covers manufacturing defects and is valid for 2 years from the date of purchase. The warranty does not include damage caused by misuse, accidental damage, or unauthorized repairs.
