24V 50A DC to DC Charger

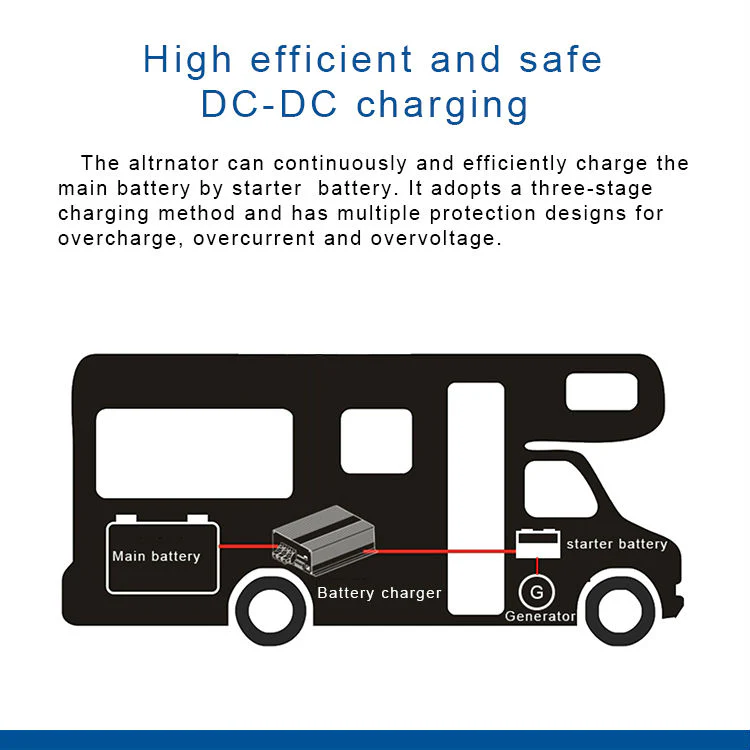

With this 50A 24V DC DC Charger you can rapid charge/maintain your auxiliary with the vehicles charging system.  Compatible with LiFePO4 Cells and other battery chemistries.

Selectable Battery Types and Charging Profiles

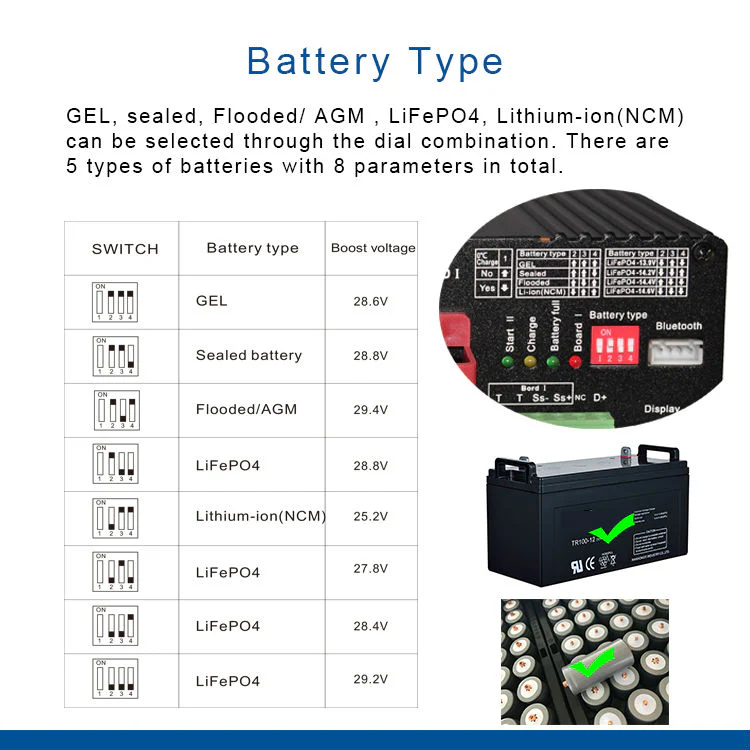

This 24V 50A DC to DC charger is designed with selectable battery type settings, allowing the charging profile to be matched to different battery chemistries using the onboard dial combination. The battery type chart on the unit displays the available options and corresponding voltage profiles.

The supported battery types include:

• GEL

• Sealed

• Flooded / AGM

• LiFePO4

• Lithium-ion (NCM)

Multiple voltage profile options are available for LiFePO4 batteries, as indicated in the battery selection chart.

50A Charging Output - The charger provides a 50A charging current and is designed for use in 24V auxiliary battery systems.

Multi-Stage Charging Control - A 4-stage high-frequency charging profile is used to regulate voltage and current during the charging process.

Built-In Protection Features

To support stable operation across the supported battery types, the charger includes:

• A temperature sensor that adjusts power output

• Protection against over-charging and low voltage

• Short-circuit and high-temperature protection

• Reverse polarity protection on both input and output connections

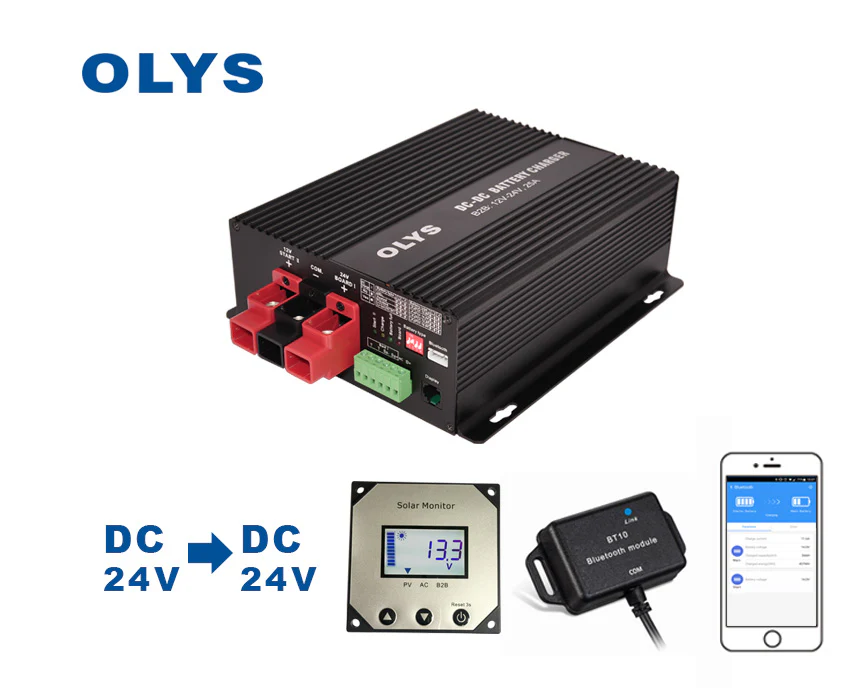

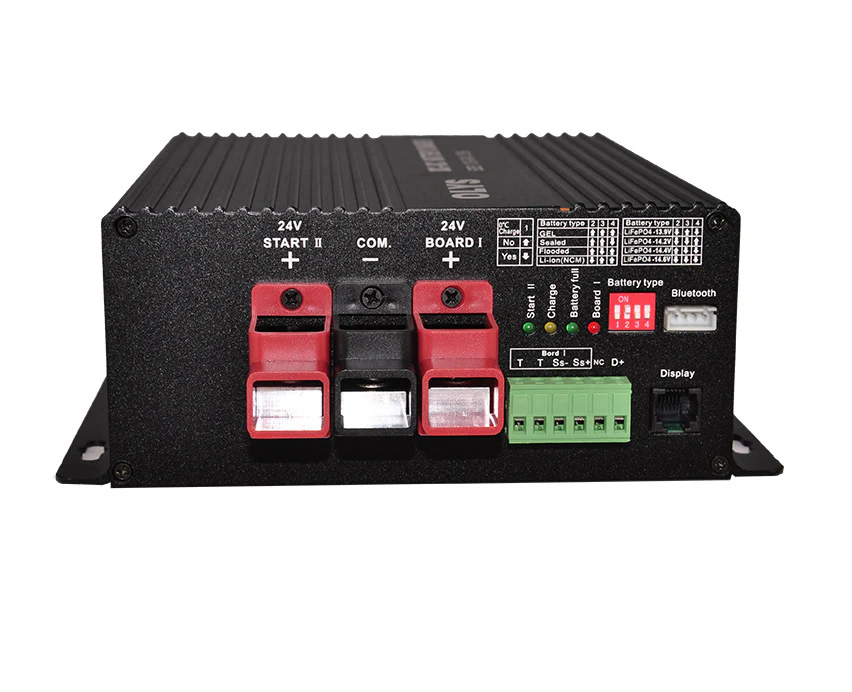

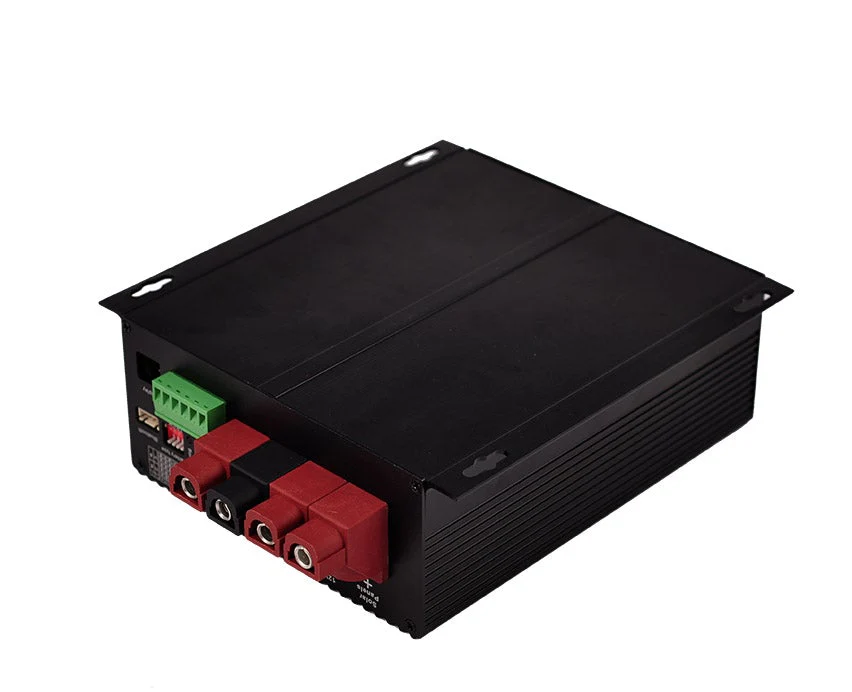

Durable Aluminium Housing - The charger is enclosed in a strong aluminium case with integrated mounting brackets. A digital display is available as an optional extra.

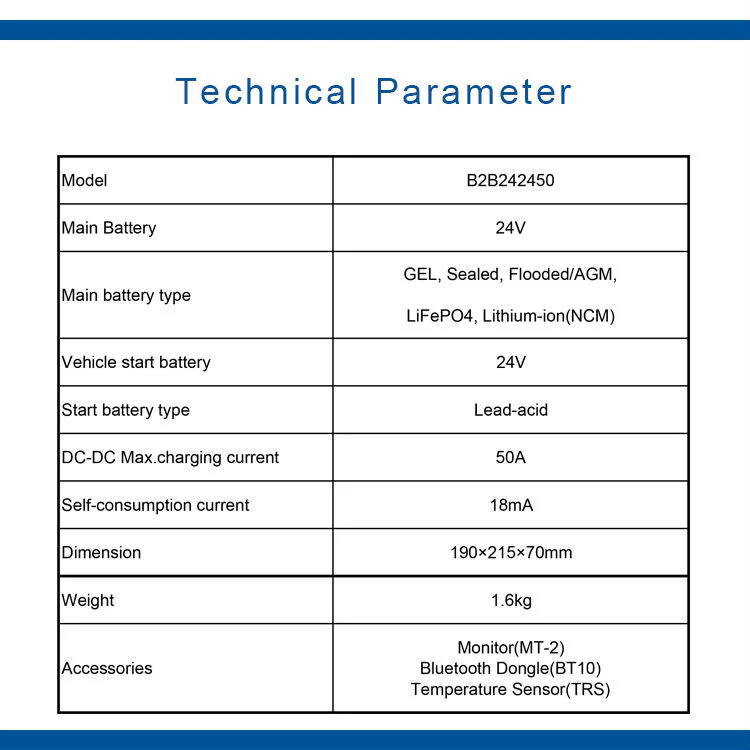

Specifications

Model:	B2B242450
Type:	Multi Stage DC to DC

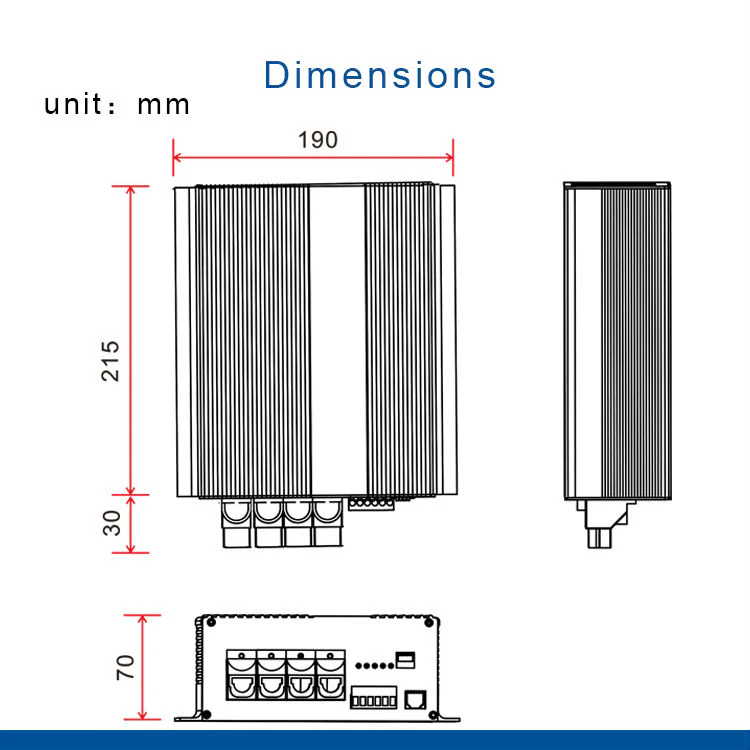

Size:	190 x 215 x 70 (mm)
Weight	1.6kg
Input:	DC Battery: 24 Volts
Output/Charging Voltage:	25.2-29.2 Volts
Output Current:	50AMP
Minimum Start Voltage:	2.0 Volts-For battery being charged
Soft Start:	Yes
Bulk Charge Voltage:	28.6V(AGM/Gel), 29.4V(Lead Acid), 25.2V(LiON), 27.8~29.2V (LiFePO4)
Equalization:	Automatic

Warranty covers manufacturing defects and is valid for 3 years from the date of purchase. The warranty does not include damage caused by misuse, accidental damage, or unauthorized repairs.
