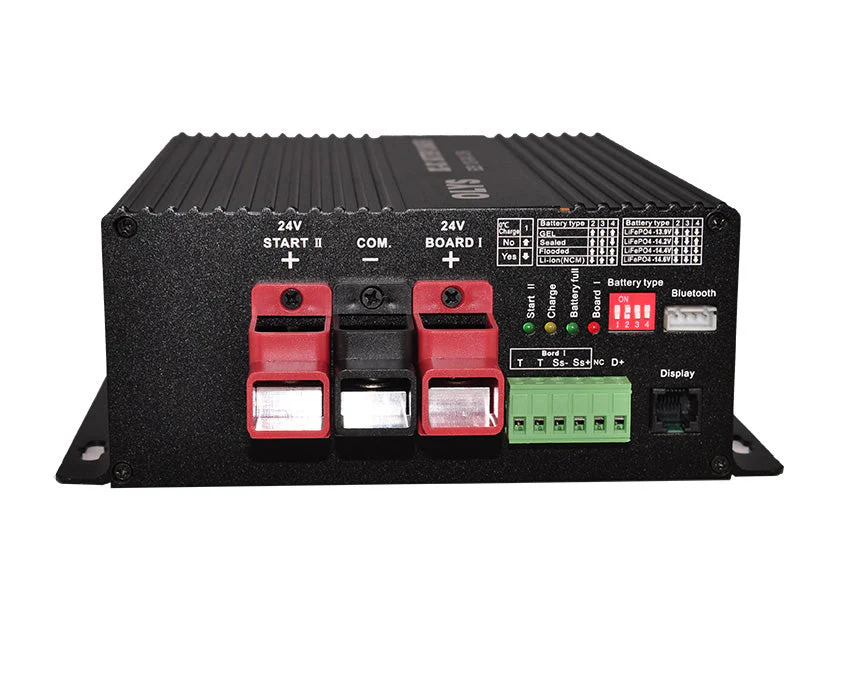

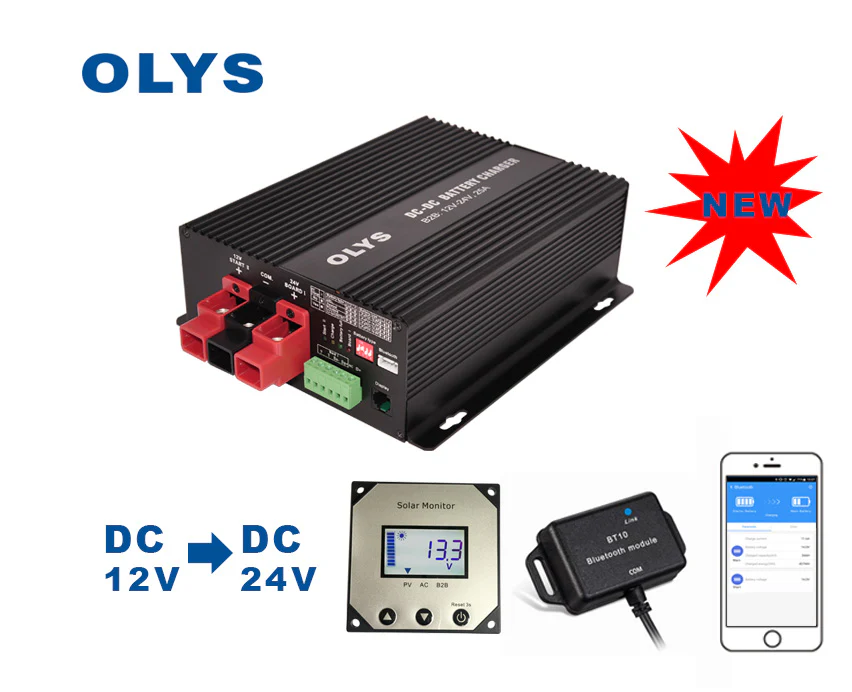

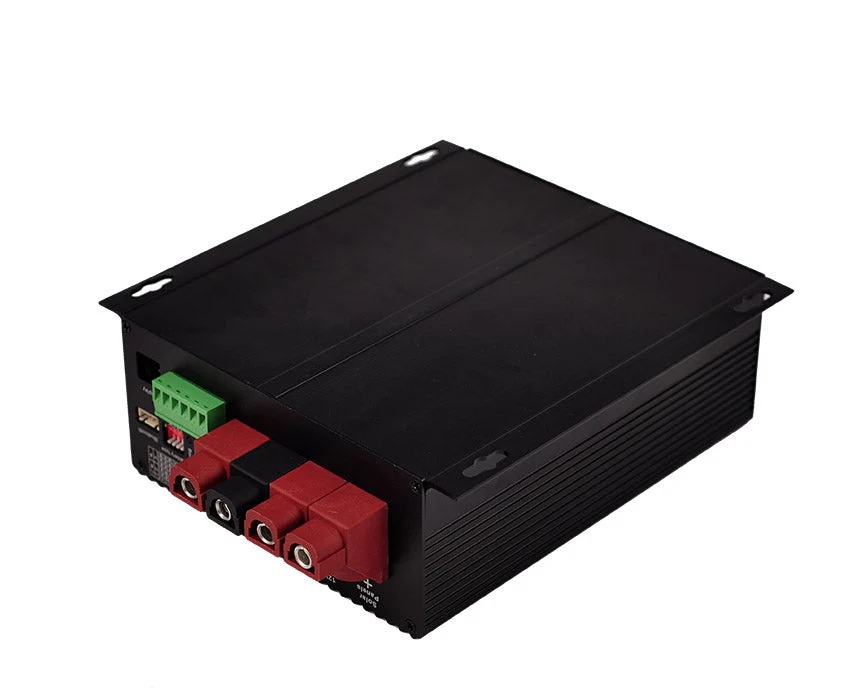

12V to 24V 25A DC to DC Charger
With this 12V to 24V 25A DC DC Charger you can rapid charge/maintain your auxiliary with the vehicles charging system. Compatible with LiFePO4 Cells and other battery chemistries. Charge your 24V Auxiliary battery from your 12V alternator.
- Strong Aluminum case with mounting brackets
- 12V to 24V charging
- Massive 25A Charging current
- 4 Stage high frequency Charging profile

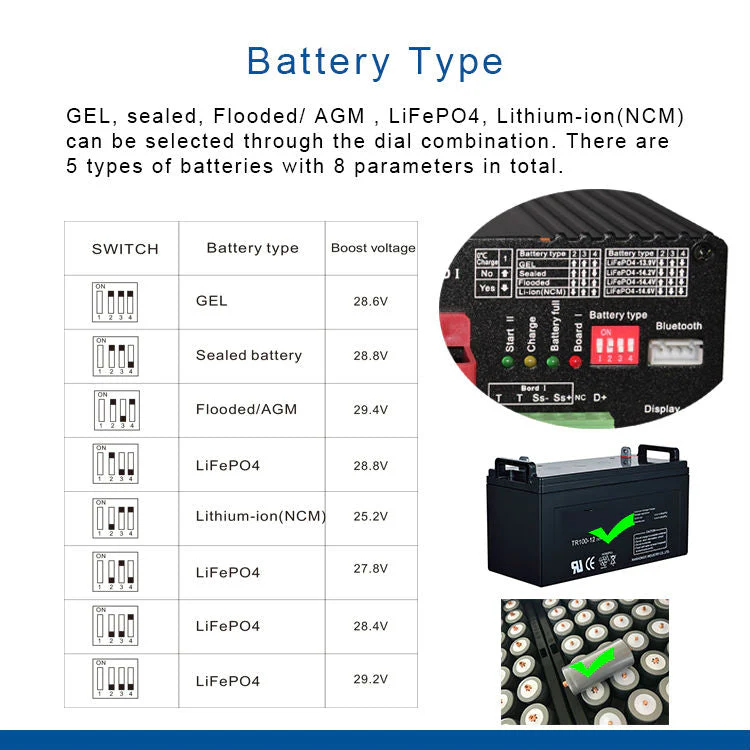

- Push button operation and compatible with AGM/Gel, Calcium, Lion, LiFePO4, Lead-Acid Batteries
- Temperature sensor which auto adjust power output
- Protection for over charging, low voltage, short circuit and high temperature.
- Reverse polarity protection for both input and outputs
- Digital Display (Optional Extra)
Specifications
| Model: | B2B122425 |
| Type: | Multi Stage DC to DC |

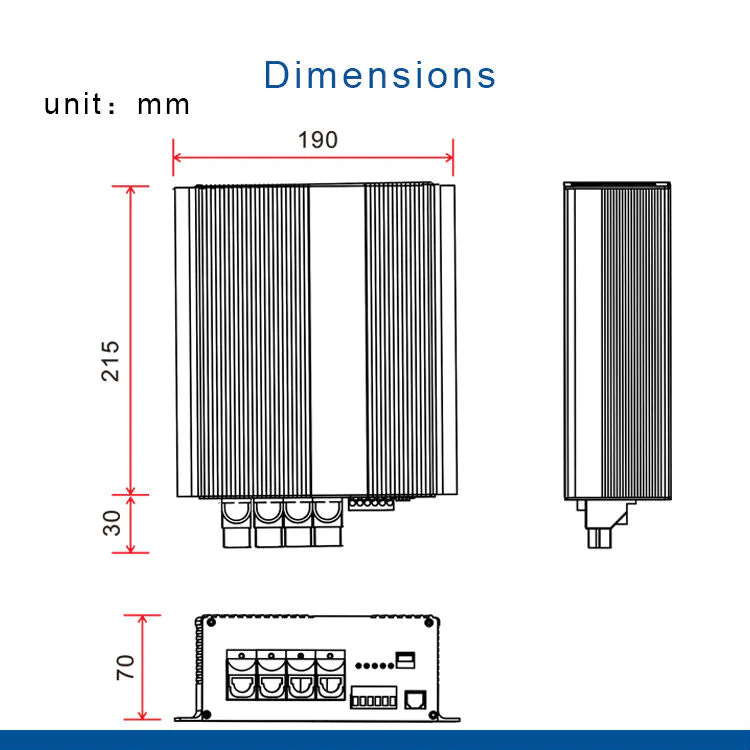

| Size: | 190 x 215 x 70 (mm) |
| Weight | 1.6kg |
| Input: | DC Battery: 12 Volts |
| Output/Charging Voltage: | 25.2-29.2 Volts |
| Output Current: | 25AMP |
| Minimum Start Voltage: | 2.0 Volts-For battery being charged |
| Soft Start: | Yes |
| Bulk Charge Voltage: | 28.6V(AGM/Gel), 29.4V(Lead Acid), 25.2V(LiON), 27.8~29.2V (LiFePO4) |
| Equalization: | Automatic |
Warranty covers manufacturing defects and is valid for 3 years from the date of purchase. The warranty does not include damage caused by misuse, accidental damage, or unauthorized repairs.
