12V 60A DC to DC Charger

This 12V 60A  DC DC Charger is designed to charge and maintain an auxiliary battery using a vehicle’s charging system. It provides controlled charging through a multi-stage charging profile and supports multiple battery types.

Key Features

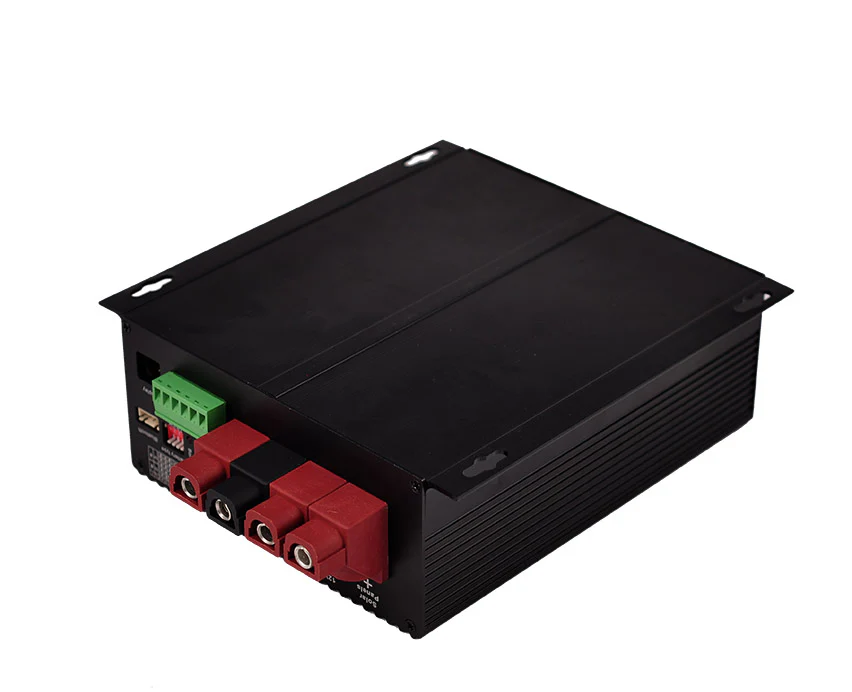

• Strong aluminium case with mounting brackets

• 60A DC to DC charging current

• 4-stage high-frequency charging profile

• Push-button battery selection for AGM, Gel, Calcium, Lithium-ion, LiFePO4 batteries and Lead-Acid batteries

• Temperature sensor with automatic power adjustment

• Protection for over-charging, low voltage, short circuit and high temperature

• Reverse polarity protection for both input and output connections

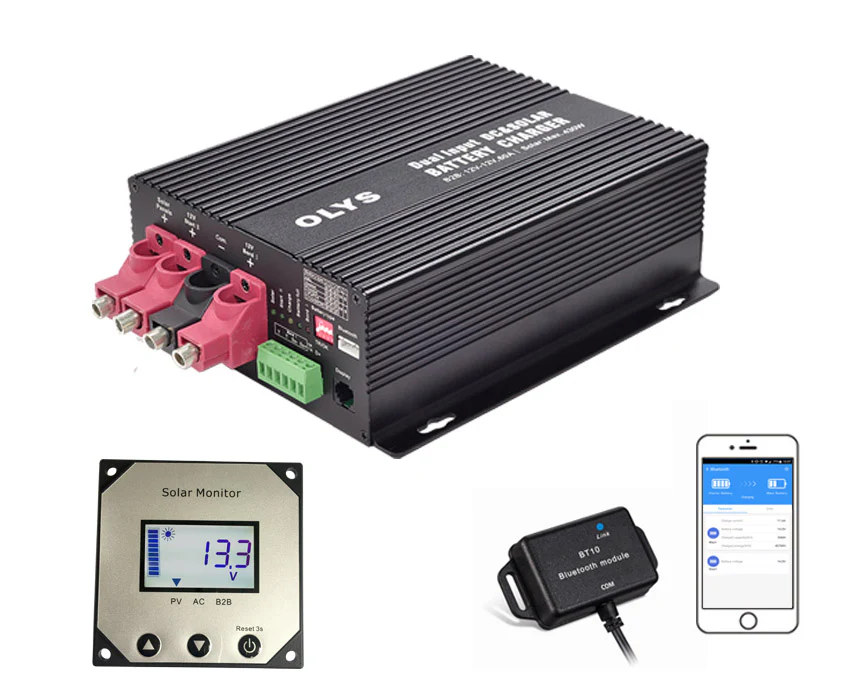

• Digital display available as an optional extra

Battery Compatibility

This charger supports the following battery types:

• AGM

• Gel

• Calcium

• Lithium-ion

• LiFePO4

• Lead-Acid

Battery selection is managed through the onboard push-button controls.

Charging and Protection Functions - The charger uses a 4-stage charging profile to regulate voltage and current during operation. Built-in protection features help manage electrical and temperature-related conditions during charging.

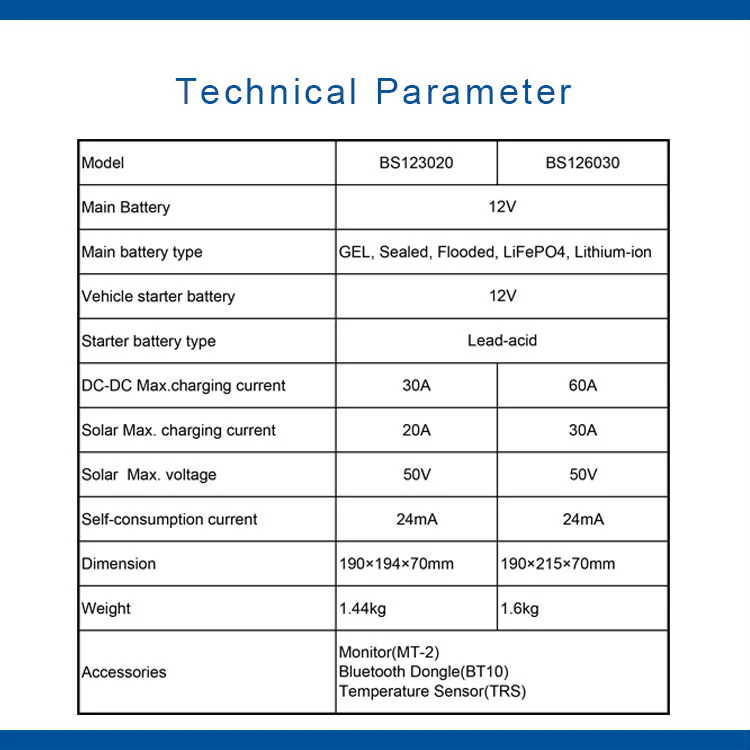

Specifications Overview

The following specifications outline the electrical and charging characteristics of this 12V DC to DC charger.

Model:	B2B1260
Type:	Multi Stage DC to DC

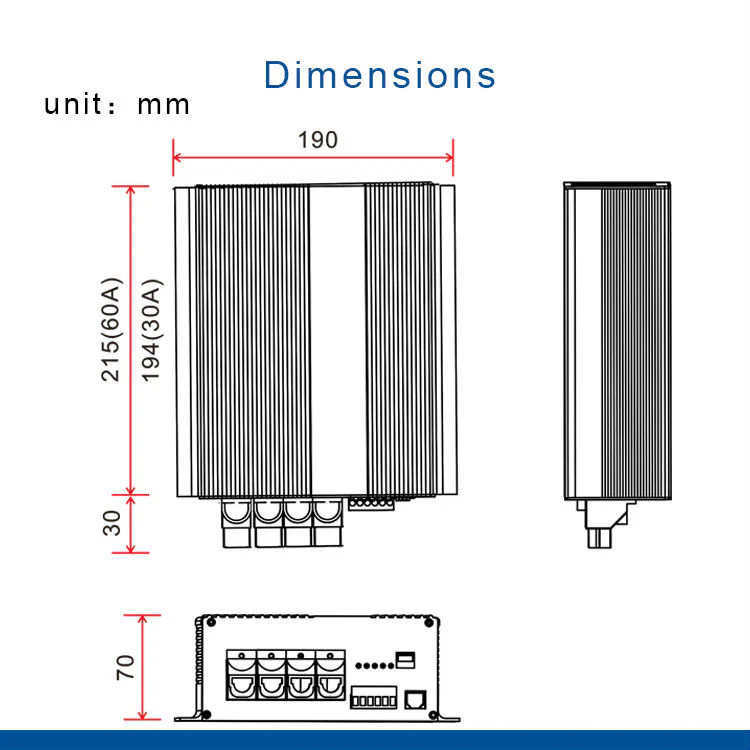

Size:	190 x 215 x 70 (mm)
Weight	1.6kg
Input:	DC Battery: 13.2-16.0 Volts
Output/Charging Voltage:	13.5-15.4 Volts(Stops charging when alternator output or vehicle battery below 13.0 volts)
Output Current:	60AMP
Minimum Start Voltage:	2.0 Volts-For battery being charged
Soft Start:	Yes
Bulk Charge Voltage:	14.7V(AGM/Gel)14.4V(Lead Acid)15.4V(Calcium)14.4V(LiON)
Equalization:	Automatic
Float Charge Voltage:	13.5V(AGM/Gel)13.5V(Lead Acid)13.5V(Calcium)
Float Charge Current:	100mA
Battery Range:	18 to 250Ah
0-1 Meters Cable:	12AWG
1-5 Meters Cable:	8 AWG
5 Meters Cable:	6 AWG
