5kVA Diesel Portable Generator (5kW Rated) - Single Phase – Model EM5500
Portable 5kVA Diesel Generator (5kW Rated) – 230V Single Phase, Electric Start, Auto Start (EM5500)
Reliable diesel backup power for homes, off-grid sites, sheds and farms—now with Auto Start capability for hands-free operation when paired to your system.
Overview
The EM5500 Portable Diesel Generator delivers dependable power with a 5kW (5kVA) rated output and 5.5kVA maximum output. It’s a strong option for customers who want a practical diesel generator for backup power, remote use, and essential loads.
Auto Start (ATS-Ready)
This unit includes an Auto Start Module and supports an Auto Start function, making it ideal for backup setups where you want the generator to start automatically when your system calls for it (installation/configuration dependent).
Key Benefits
- Auto Start capable: includes Auto Start Module for compatible setups
- Easy starting: one-key electric start
- Protection built-in: AC circuit breaker + oil warning/alert
- Useful outputs: 2 x AC sockets + 12V DC output
- Portable design: handle & wheels for easier movement
Tip: If you're running motors (pumps, compressors) or high-startup loads, tell us what you’re powering and we’ll help size it correctly.
Want Us To Check Your Loads?
Send us the list of appliances/tools (and motor sizes if relevant) and we’ll confirm if this generator is the right fit.
Specifications
| Model | EM5500 |
| Frequency | 50Hz |
| Rated output | 5kW / 5kVA |
| Max output | 5.5kVA |
| Rated AC voltage | 230V |
| Phase | Single phase |
| Power factor | cosφ = 1 |
| DC output | 12V / 8.3A |
| Starting system | One-key electric start |
| Operating noise level (at 7m) | 68–72 dB |
| Fuel tank capacity | 15L |
| Continuous run time | Up to 8.5 hours |
| Engine type | Single cylinder, vertical, 4-stroke, air-cooled diesel |
| Engine model | 186 (Co) |
| Lubrication oil volume | 1.65L |

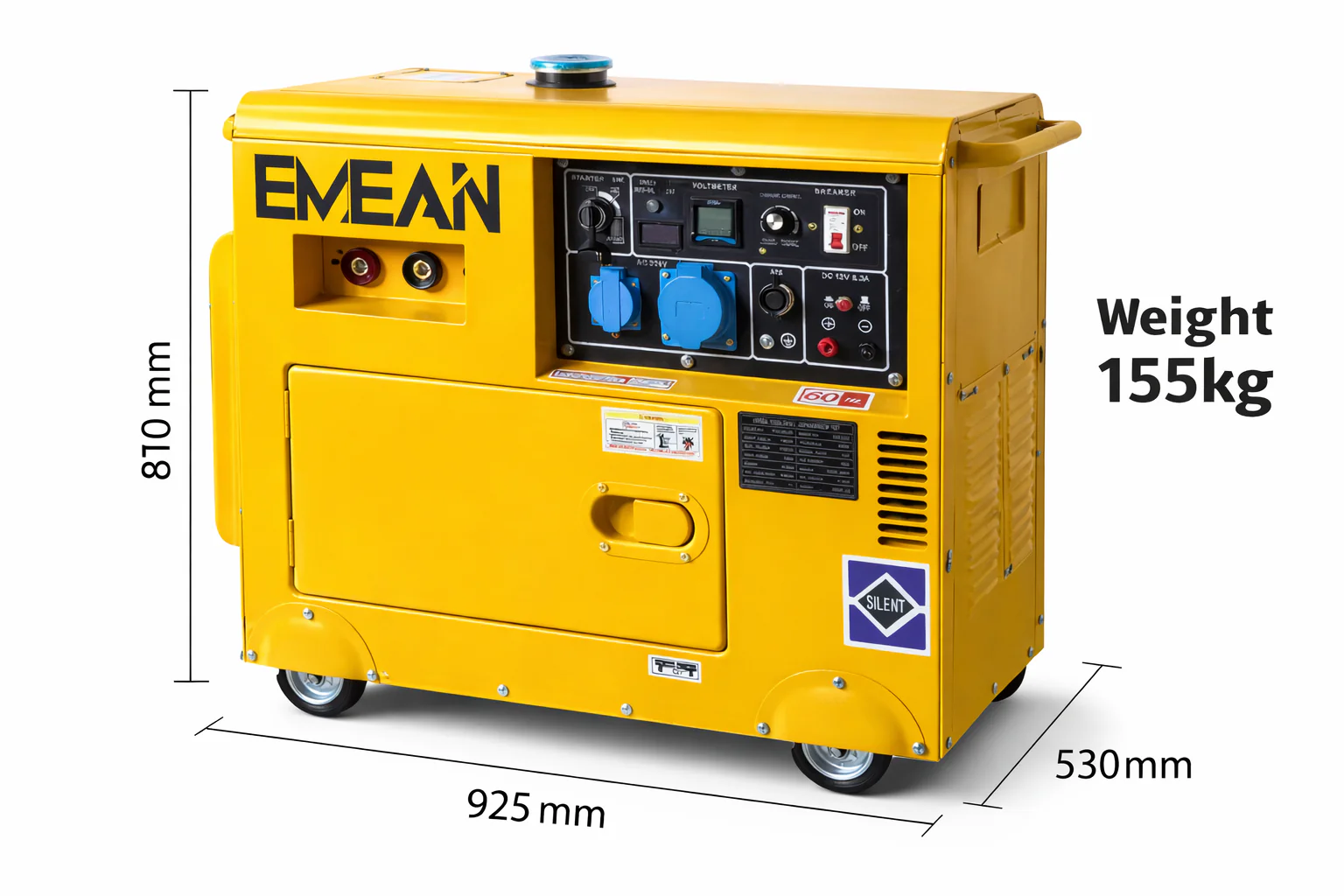

| Dimensions (L×W×H) | 925 × 530 × 810 mm |
| Weight | 155 kg |
Specifications above are from the EM5500 product sheet.
What’s Included
- Generator set (EM5500)
- Auto Start Module
- Voltmeter
- 2 x AC output sockets
- Handle & wheels
- AC circuit breaker
- Oil warning light + oil alert
FAQs
Does this generator support Auto Start?
Yes. This unit has an Auto Start function and includes the Auto Start Module for compatible installations.
Is this generator 240V?
It's a 230 V / 50 Hz which is compatible with Australian appliances
How long will it run on a full tank?
It has a 15L tank and is listed for up to 8.5 hours continuous operation (load dependent).
Does it have electric start?
Yes—this model has a one-key electric starting system.
