Off-Grid Kit DEYE Single Phase Hybrid Inverter + Jinko 475W Solar Panels + LiFePO4 Battery Kit (JK BMS)

Achieve energy independence with our Off-Grid Kit, built with premium components for reliable solar generation and lithium storage. Perfect for tiny homes, off-grid houses, sheds, farms, and remote sites—power when you need it, wherever you are.

Choose Your Inverter Size

DEYE 5kW Single Phase Hybrid Inverter Best for smaller setups and lighter loads.
DEYE 8kW Single Phase Hybrid Inverter Best all-rounder for most off-grid homes and higher loads.
DEYE 10kW Single Phase Hybrid Inverter Ideal for larger homes and higher-demand systems needing extra capacity.
DEYE 16kW Single Phase Hybrid Inverter Built for large homes, farms, workshops, and heavy loads.

What’s Included

DEYE Hybrid Inverter (5kW / 8kW / 10kW / 16kW)
475W Jinko Solar Panels
Dual Core Solar Cables
48V (51.2V nominal) LiFePO4 Battery Pack Kit with JK BMS
100Ah (5.12kWh), 130Ah (6.66kWh), 230Ah (11.78kWh), 280Ah (14.34kWh), 314Ah (16.08kWh), 628Ah (32.15kWh)
2 Array Solar Combiner Box Dual 500V Inputs & Outputs with Surge Protection (IP65)
DC Circuit Breaker Box Pre-Wired Battery to Inverter Connection (Waterproof, IP65)

Bundle Sizes (Simple, Install-Friendly)

DEYE 5kW, 8kW & 10kW Bundles these inverter sizes share the same panel layouts.

Choose your inverter size above, layouts remain the same.

Bundle	Panels	PV Size	Stringing	Battery Options (51.2V nominal)
Extra Small	5	2.38kW	5S	100Ah (5.12kWh) or 130Ah (6.66kWh)
Small	10	4.75kW	5S + 5S	230Ah (11.78kWh) or 280Ah (14.34kWh)
Medium	16	7.60kW	8S + 8S	314Ah (16.08kWh) or 2 × 230Ah (23.55kWh)
Large	20	9.50kW	10S + 10S	2 × 280Ah (28.67kWh) or 628Ah (32.15kWh)

DEYE 16kW Bundles

Bundle	Panels	PV Size	Stringing	Battery Options (51.2V nominal)
Extra Small	5	2.38kW	5S	100Ah (5.12kWh) or 130Ah (6.66kWh)
Small	12	5.70kW	6S + 6S	230Ah (11.78kWh) or 280Ah (14.34kWh)
Medium	18	8.55kW	6S + 6S + 6S	314Ah (16.08kWh) or 2 × 230Ah (23.55kWh)
Large	24	11.40kW	8S + 8S + 8S	2 × 280Ah (28.67kWh) or 628Ah (32.15kWh)

Simple Wiring Overview (Series Layout Recommended)

Series strings only (e.g. 5S, 8S, 10S).
One string per MPPT for clean performance.
8kW / 10kW example (Large): 10 panels in series to MPPT1 + 10 panels in series to MPPT2 (10S + 10S).
16kW example (Large): 8 panels in series to MPPT1 + MPPT2 + MPPT3 (8S + 8S + 8S).

Benefits

Energy Independence
Cost Savings
Environmental Impact
Scalable Design
Reliable Power Supply

Applications

Residential homes
Remote properties
Eco-conscious businesses
Emergency backup systems

Equip yourself with a DEYE hybrid inverter, Jinko 475W solar, advanced LiFePO4 storage, and professional-grade protection hardware for a sustainable, efficient energy solution—built for Australia’s off-grid lifestyle.

Off-Grid Kits

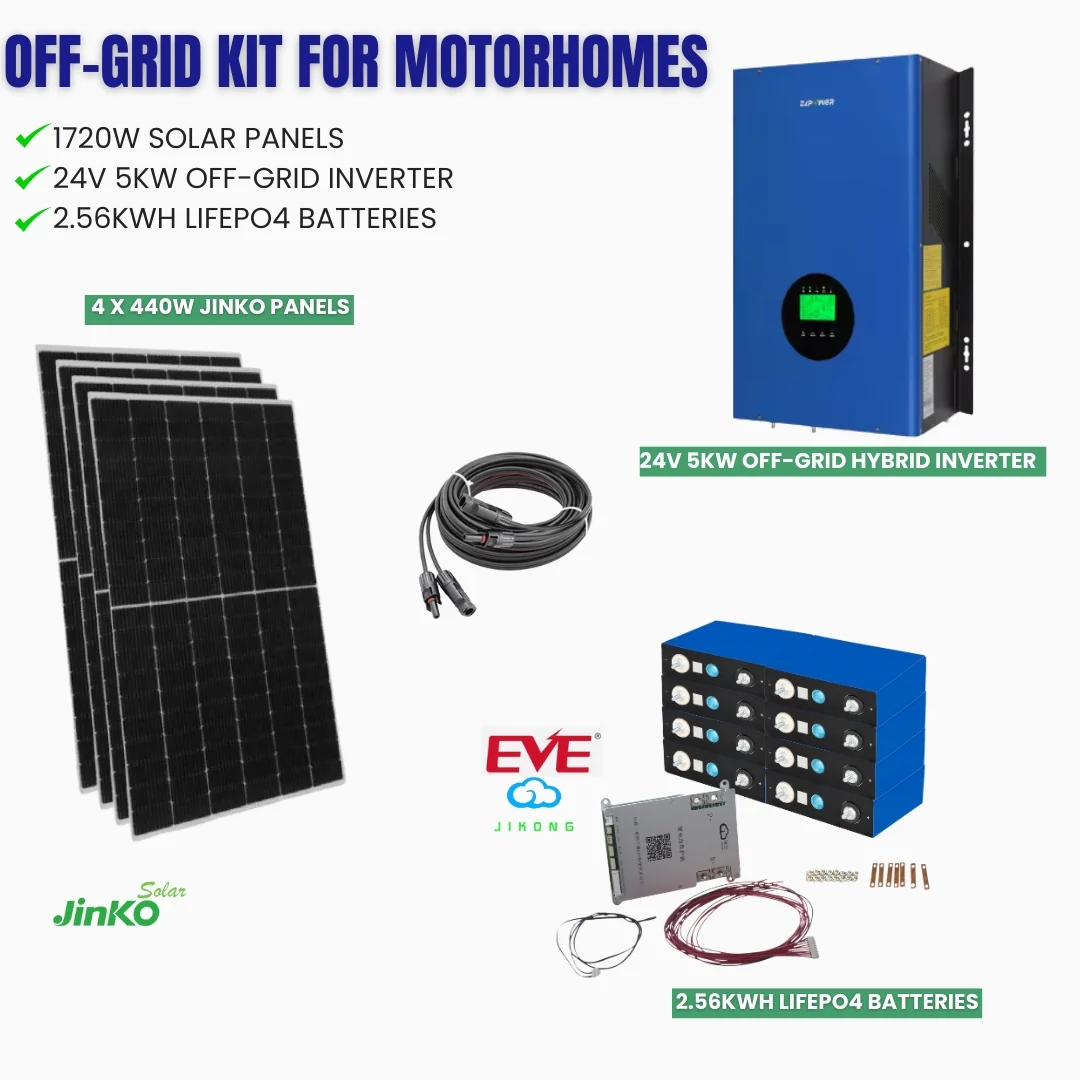

Off Grid System - For Motorhomes

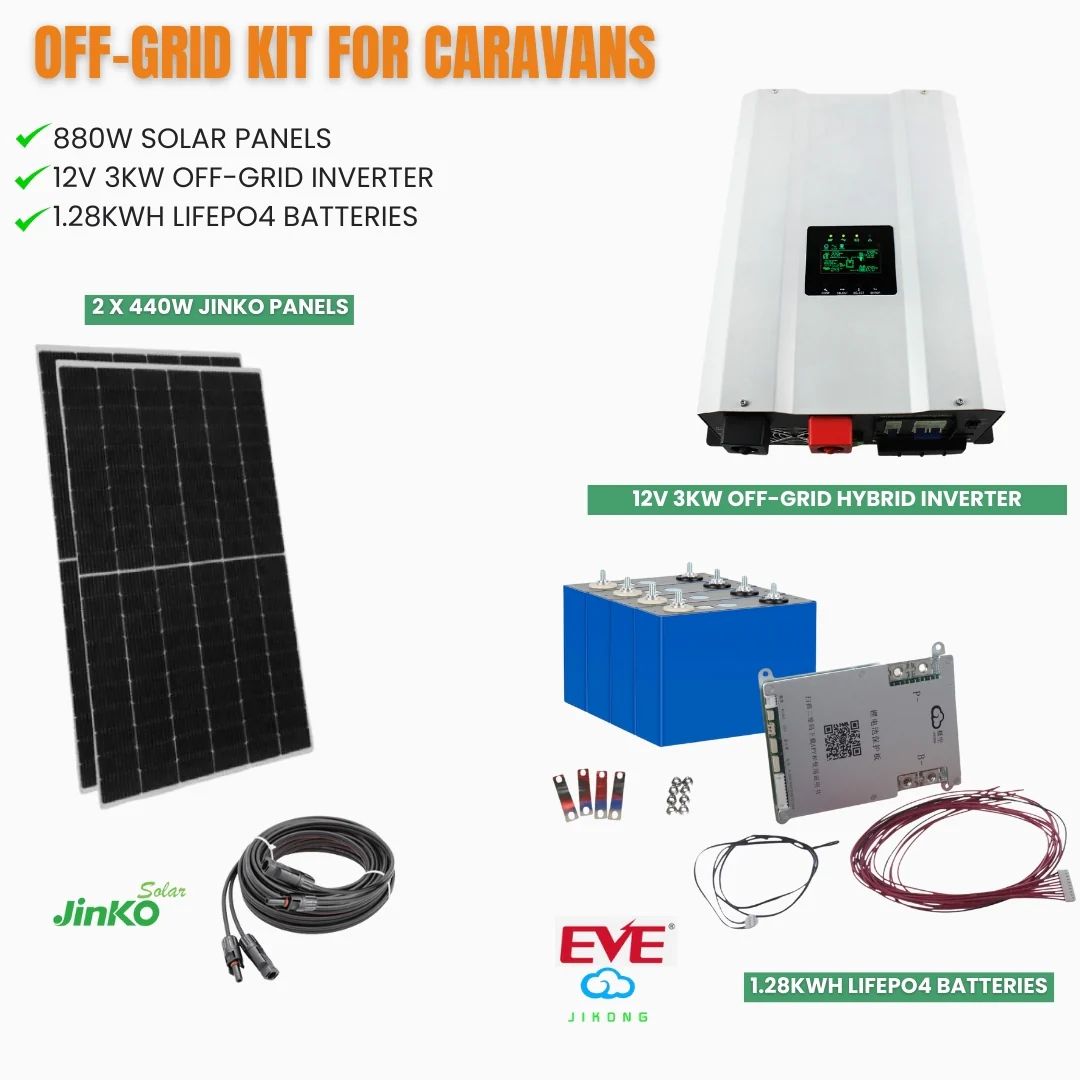

Off Grid System - For Caravans

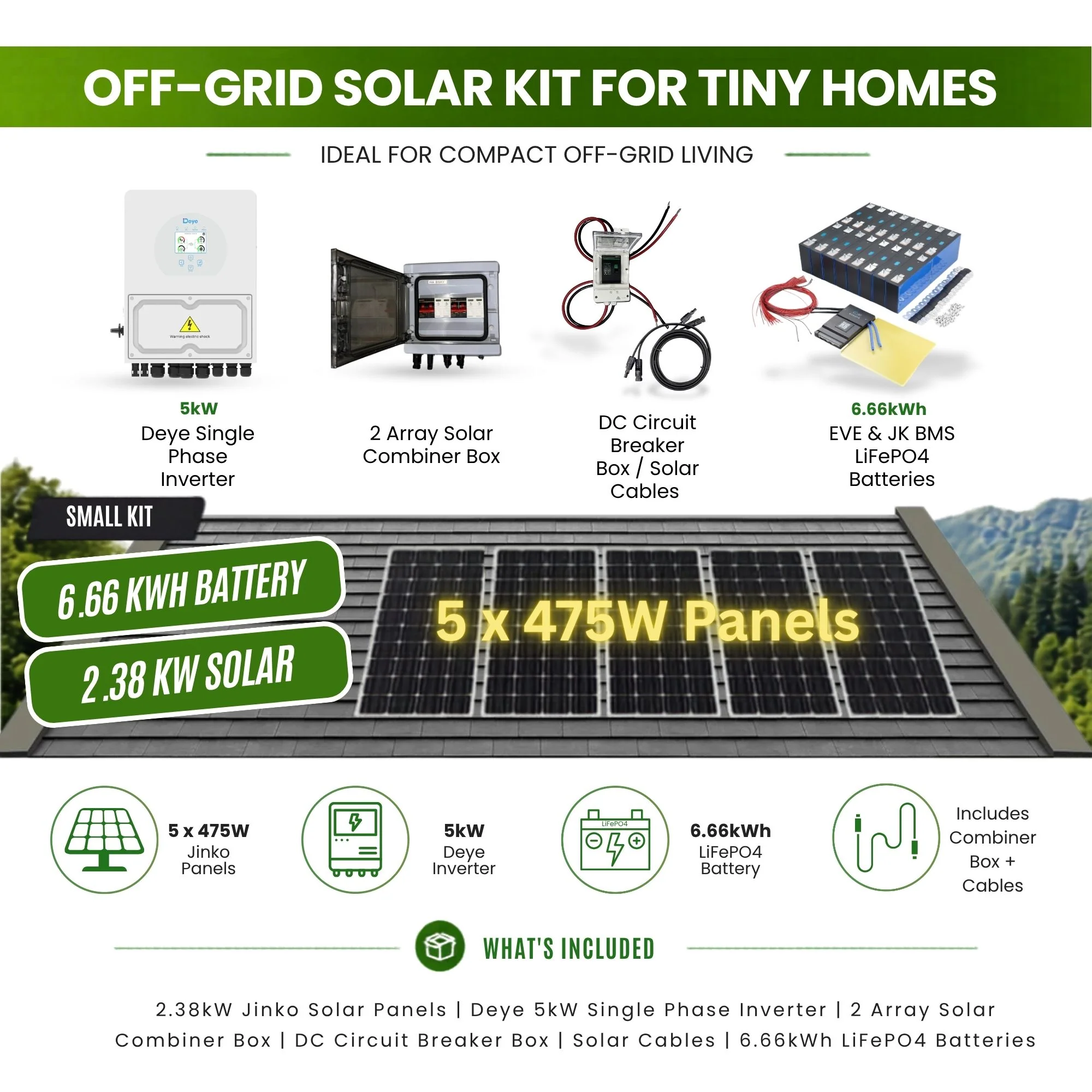

Off Grid System - For Tiny Homes

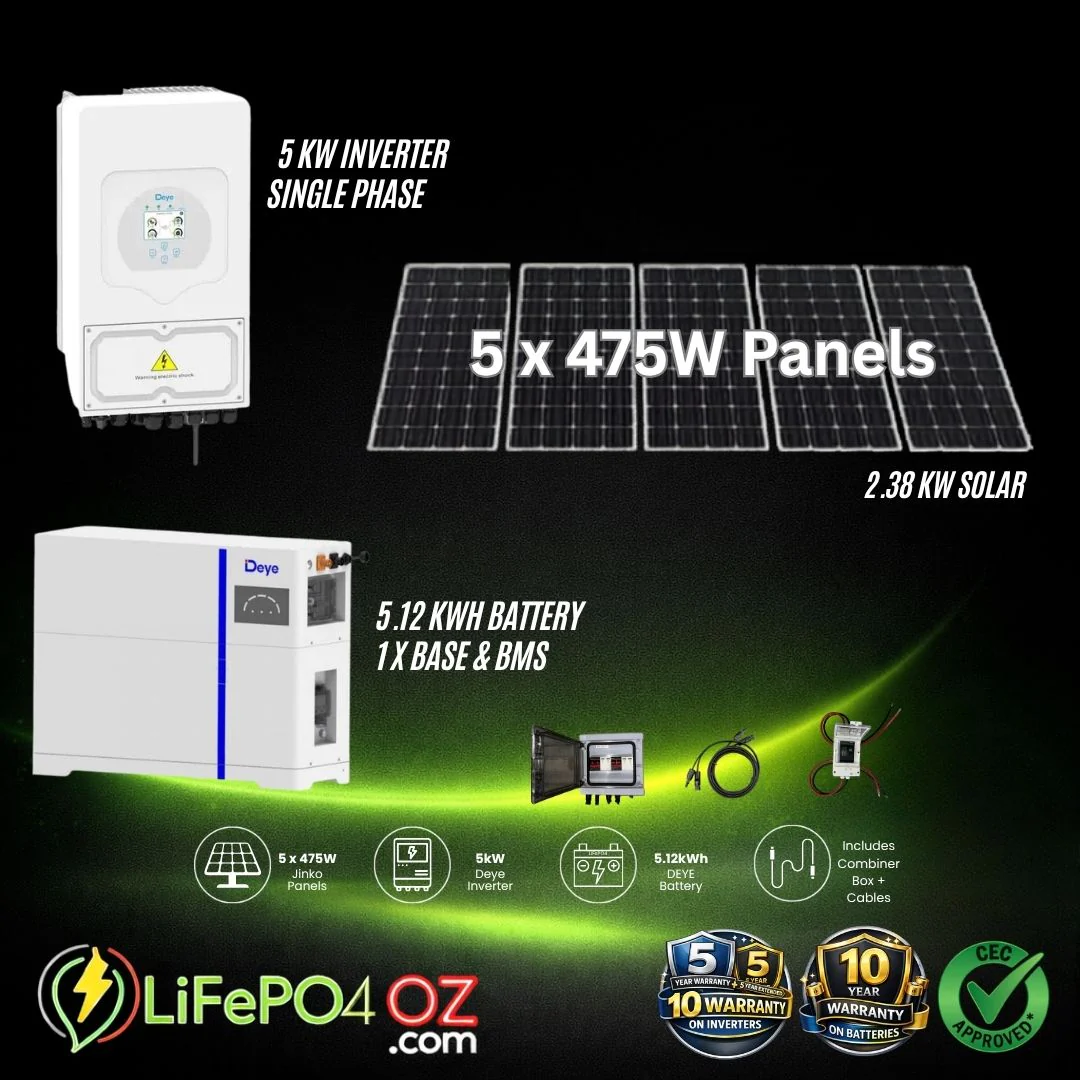

Deye Complete Off-Grid Solar & Battery System
