Off Grid System - For Tiny Homes

Off-Grid Kit DEYE Single Phase Hybrid Inverter + Jinko 475W Solar Panels + LiFePO4 Battery Kit (JK BMS)

Achieve energy independence with our Off-Grid Kit, built with premium components for reliable solar generation and lithium storage. Perfect for tiny homes, off-grid houses, sheds, farms, and remote sites—power when you need it, wherever you are.

Choose Your Inverter Size

  • DEYE 5kW Single Phase Hybrid Inverter Best for smaller setups and lighter loads.
  • DEYE 8kW Single Phase Hybrid Inverter Best all-rounder for most off-grid homes and higher loads.
  • DEYE 10kW Single Phase Hybrid Inverter Ideal for larger homes and higher-demand systems needing extra capacity.
  • DEYE 16kW Single Phase Hybrid Inverter Built for large homes, farms, workshops, and heavy loads.

What’s Included

  • DEYE Hybrid Inverter (5kW / 8kW / 10kW / 16kW)
  • 475W Jinko Solar Panels
  • Dual Core Solar Cables
  • 48V (51.2V nominal) LiFePO4 Battery Pack Kit with JK BMS
    100Ah (5.12kWh), 130Ah (6.66kWh), 230Ah (11.78kWh), 280Ah (14.34kWh), 314Ah (16.08kWh), 628Ah (32.15kWh)
  • 2 Array Solar Combiner Box Dual 500V Inputs & Outputs with Surge Protection (IP65)
  • DC Circuit Breaker Box Pre-Wired Battery to Inverter Connection (Waterproof, IP65)

Bundle Sizes (Simple, Install-Friendly)

DEYE 5kW, 8kW & 10kW Bundles these inverter sizes share the same panel layouts.

Choose your inverter size above, layouts remain the same.

Bundle Panels PV Size Stringing Battery Options (51.2V nominal)

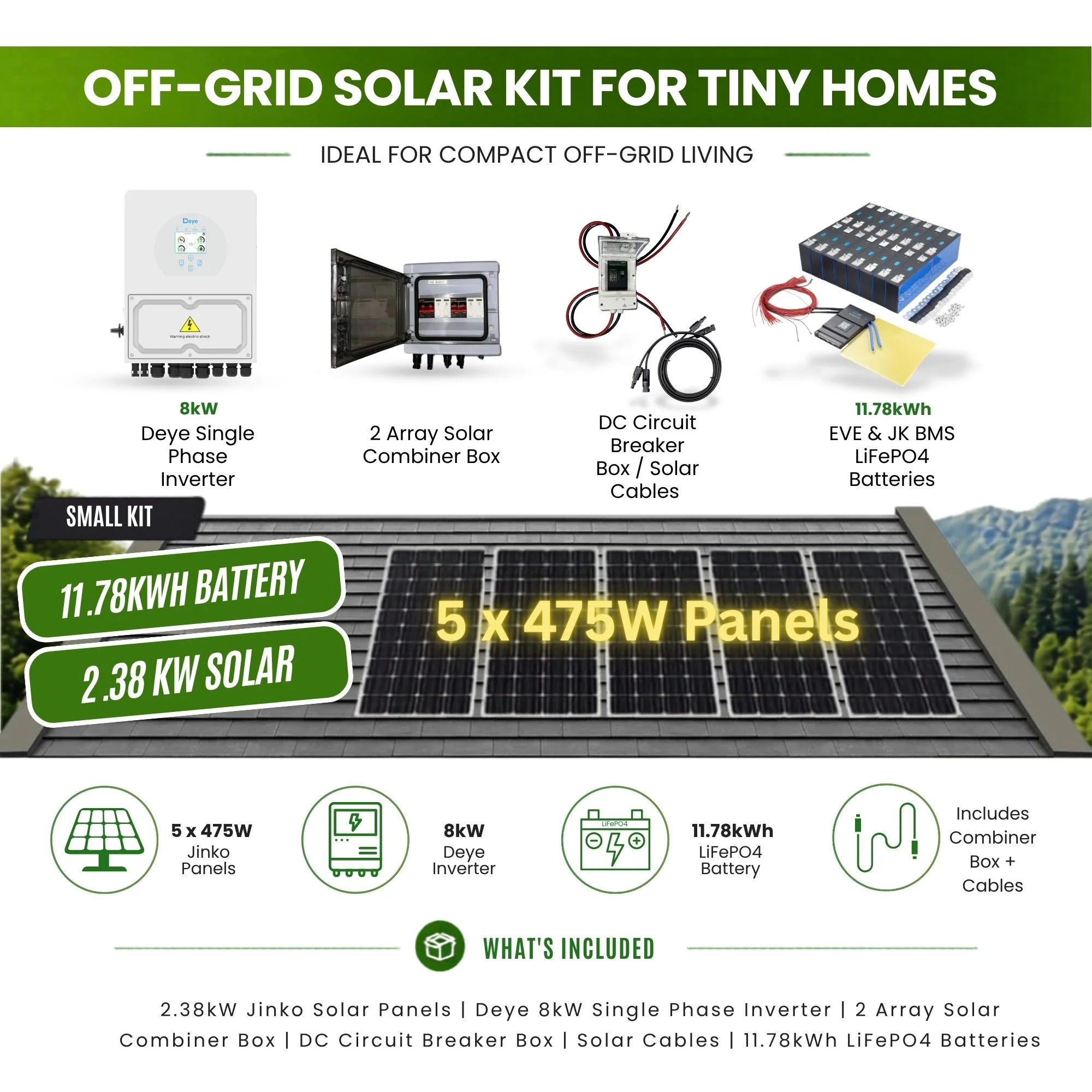

Extra Small 5 2.38kW 5S 100Ah (5.12kWh) or 130Ah (6.66kWh)
Small 10 4.75kW 5S + 5S 230Ah (11.78kWh) or 280Ah (14.34kWh)

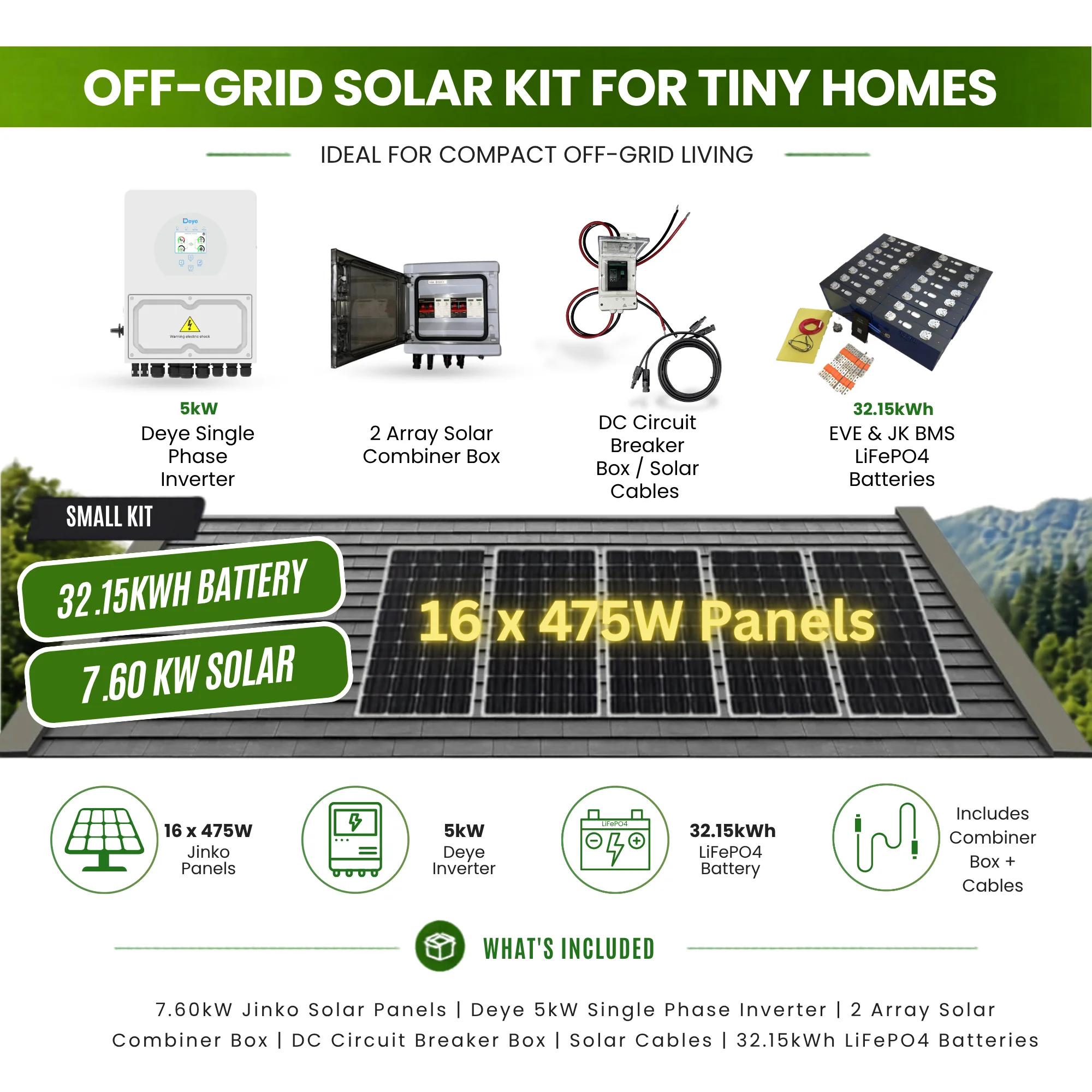

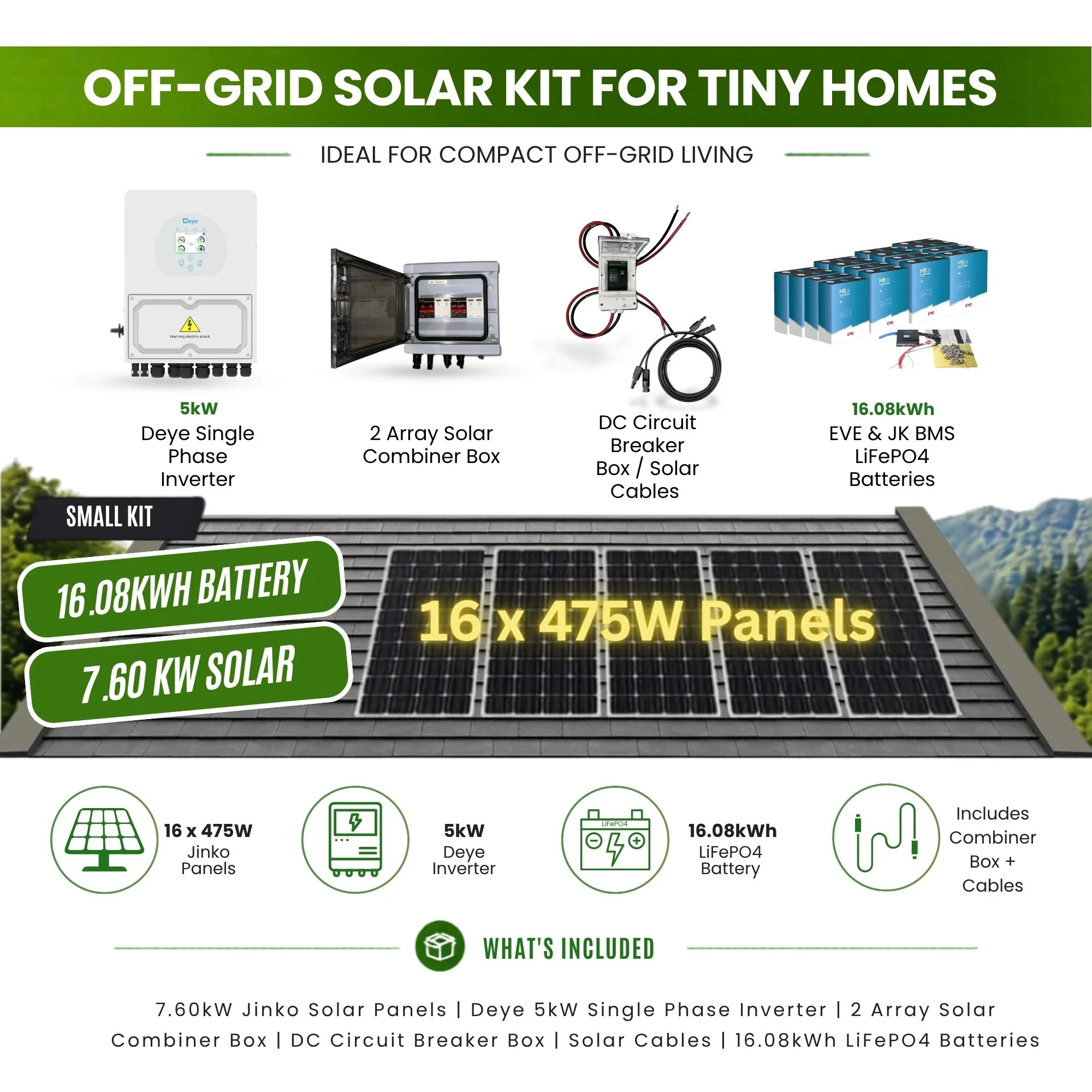

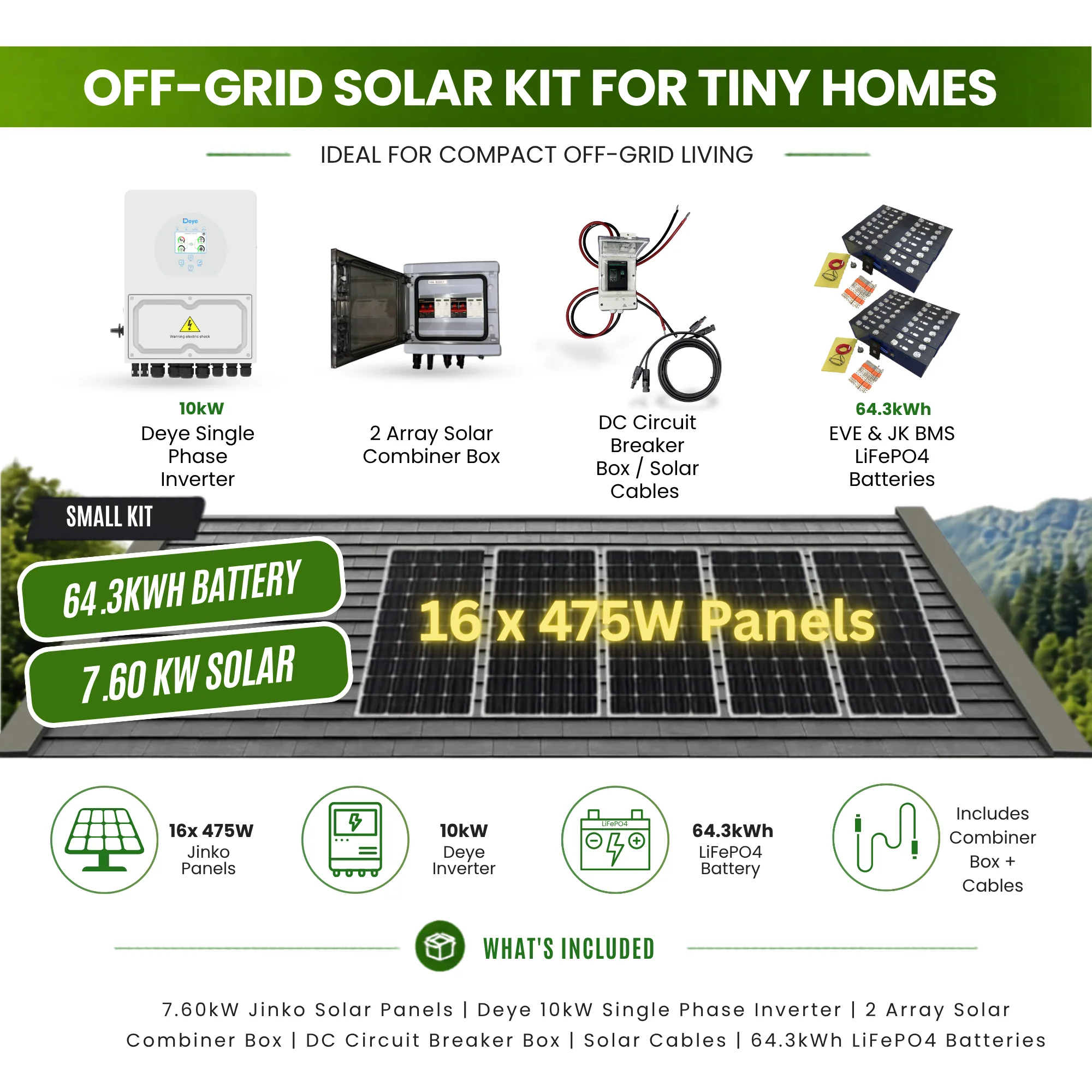

Medium 16 7.60kW 8S + 8S 314Ah (16.08kWh) or 2 × 230Ah (23.55kWh)
Large 20 9.50kW 10S + 10S 2 × 280Ah (28.67kWh) or 628Ah (32.15kWh)


DEYE 16kW Bundles

Bundle Panels PV Size Stringing Battery Options (51.2V nominal)
Extra Small 5 2.38kW 5S 100Ah (5.12kWh) or 130Ah (6.66kWh)
Small 12 5.70kW 6S + 6S 230Ah (11.78kWh) or 280Ah (14.34kWh)

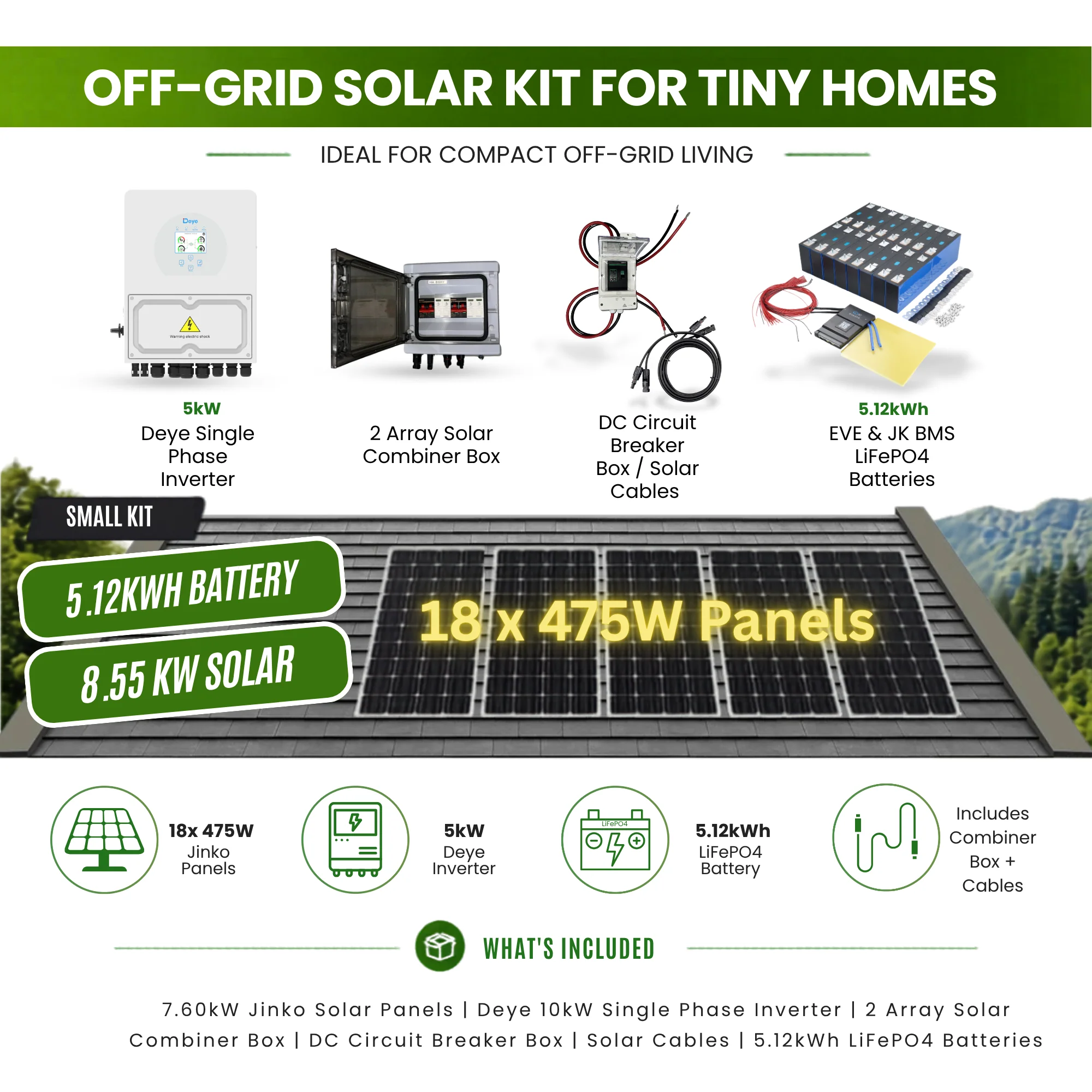

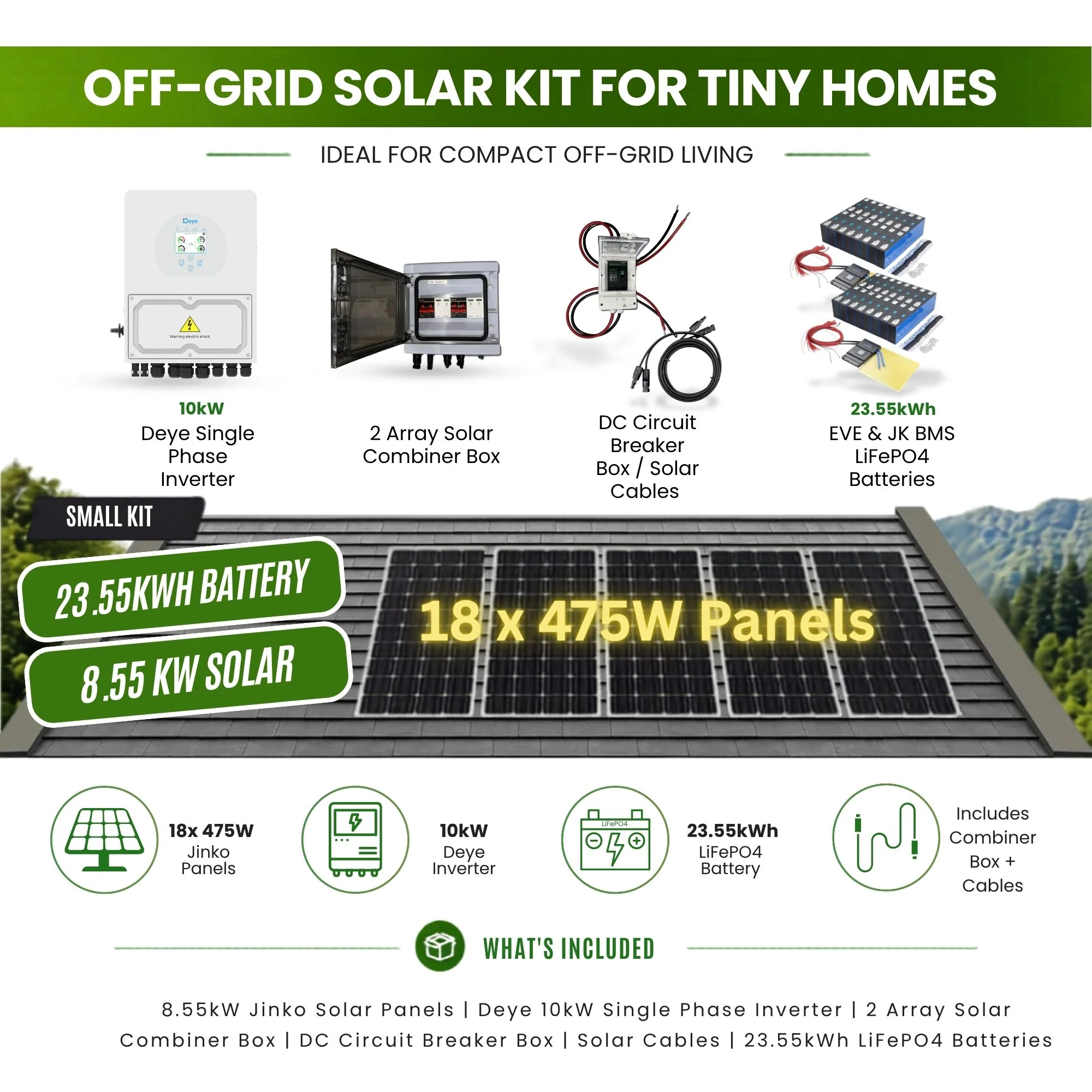

Medium 18 8.55kW 6S + 6S + 6S 314Ah (16.08kWh) or 2 × 230Ah (23.55kWh)
Large 24 11.40kW 8S + 8S + 8S 2 × 280Ah (28.67kWh) or 628Ah (32.15kWh)

Simple Wiring Overview (Series Layout Recommended)

  • Series strings only (e.g. 5S, 8S, 10S).
  • One string per MPPT for clean performance.
  • 8kW / 10kW example (Large): 10 panels in series to MPPT1 + 10 panels in series to MPPT2 (10S + 10S).
  • 16kW example (Large): 8 panels in series to MPPT1 + MPPT2 + MPPT3 (8S + 8S + 8S).

Benefits

  • Energy Independence
  • Cost Savings
  • Environmental Impact
  • Scalable Design
  • Reliable Power Supply

Applications

  • Residential homes
  • Remote properties
  • Eco-conscious businesses
  • Emergency backup systems

Equip yourself with a DEYE hybrid inverter, Jinko 475W solar, advanced LiFePO4 storage, and professional-grade protection hardware for a sustainable, efficient energy solution—built for Australia’s off-grid lifestyle.

Select Solar Panel
Select Inverter
Select Battery
From $1,728.68

Original: $4,939.10

-65%
Off Grid System - For Tiny Homes—

$4,939.10

$1,728.68

Product Information

Shipping & Returns

Description

Off-Grid Kit DEYE Single Phase Hybrid Inverter + Jinko 475W Solar Panels + LiFePO4 Battery Kit (JK BMS)

Achieve energy independence with our Off-Grid Kit, built with premium components for reliable solar generation and lithium storage. Perfect for tiny homes, off-grid houses, sheds, farms, and remote sites—power when you need it, wherever you are.

Choose Your Inverter Size

  • DEYE 5kW Single Phase Hybrid Inverter Best for smaller setups and lighter loads.
  • DEYE 8kW Single Phase Hybrid Inverter Best all-rounder for most off-grid homes and higher loads.
  • DEYE 10kW Single Phase Hybrid Inverter Ideal for larger homes and higher-demand systems needing extra capacity.
  • DEYE 16kW Single Phase Hybrid Inverter Built for large homes, farms, workshops, and heavy loads.

What’s Included

  • DEYE Hybrid Inverter (5kW / 8kW / 10kW / 16kW)
  • 475W Jinko Solar Panels
  • Dual Core Solar Cables
  • 48V (51.2V nominal) LiFePO4 Battery Pack Kit with JK BMS
    100Ah (5.12kWh), 130Ah (6.66kWh), 230Ah (11.78kWh), 280Ah (14.34kWh), 314Ah (16.08kWh), 628Ah (32.15kWh)
  • 2 Array Solar Combiner Box Dual 500V Inputs & Outputs with Surge Protection (IP65)
  • DC Circuit Breaker Box Pre-Wired Battery to Inverter Connection (Waterproof, IP65)

Bundle Sizes (Simple, Install-Friendly)

DEYE 5kW, 8kW & 10kW Bundles these inverter sizes share the same panel layouts.

Choose your inverter size above, layouts remain the same.

Bundle Panels PV Size Stringing Battery Options (51.2V nominal)
Extra Small 5 2.38kW 5S 100Ah (5.12kWh) or 130Ah (6.66kWh)
Small 10 4.75kW 5S + 5S 230Ah (11.78kWh) or 280Ah (14.34kWh)
Medium 16 7.60kW 8S + 8S 314Ah (16.08kWh) or 2 × 230Ah (23.55kWh)
Large 20 9.50kW 10S + 10S 2 × 280Ah (28.67kWh) or 628Ah (32.15kWh)


DEYE 16kW Bundles

Bundle Panels PV Size Stringing Battery Options (51.2V nominal)
Extra Small 5 2.38kW 5S 100Ah (5.12kWh) or 130Ah (6.66kWh)
Small 12 5.70kW 6S + 6S 230Ah (11.78kWh) or 280Ah (14.34kWh)
Medium 18 8.55kW 6S + 6S + 6S 314Ah (16.08kWh) or 2 × 230Ah (23.55kWh)
Large 24 11.40kW 8S + 8S + 8S 2 × 280Ah (28.67kWh) or 628Ah (32.15kWh)

Simple Wiring Overview (Series Layout Recommended)

  • Series strings only (e.g. 5S, 8S, 10S).
  • One string per MPPT for clean performance.
  • 8kW / 10kW example (Large): 10 panels in series to MPPT1 + 10 panels in series to MPPT2 (10S + 10S).
  • 16kW example (Large): 8 panels in series to MPPT1 + MPPT2 + MPPT3 (8S + 8S + 8S).

Benefits

  • Energy Independence
  • Cost Savings
  • Environmental Impact
  • Scalable Design
  • Reliable Power Supply

Applications

  • Residential homes
  • Remote properties
  • Eco-conscious businesses
  • Emergency backup systems

Equip yourself with a DEYE hybrid inverter, Jinko 475W solar, advanced LiFePO4 storage, and professional-grade protection hardware for a sustainable, efficient energy solution—built for Australia’s off-grid lifestyle.
