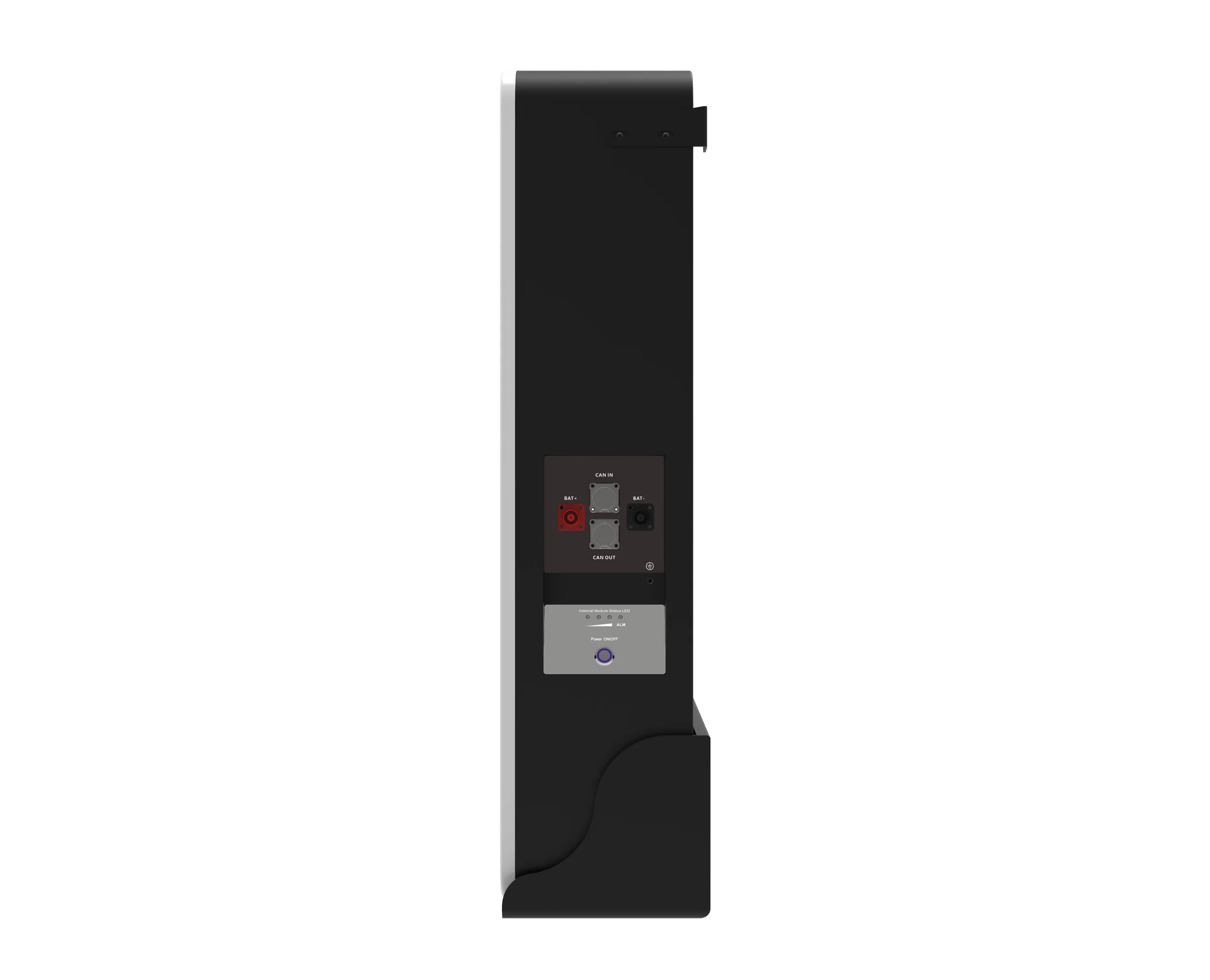

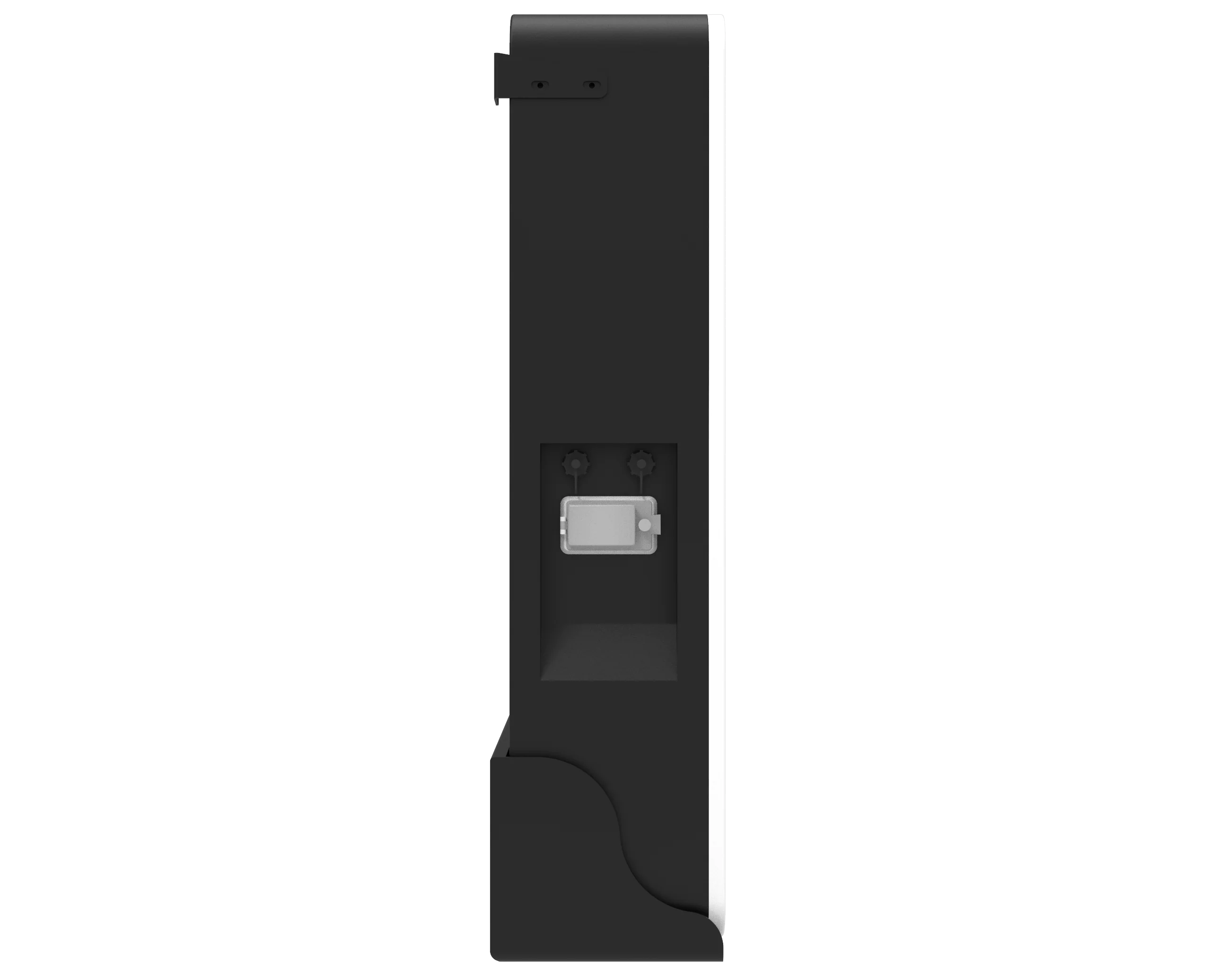

Dyness Powerbox Pro 10.24kWh Low Voltage LFP Battery

Dyness Powerbox Pro 10.24kWh Low Voltage LFP Battery

CEC Approved. Eligible for the Battery Rebate.

Power up your off-grid or hybrid system with the Dyness Powerbox Pro 10.24kWh Low Voltage LFP Battery. Engineered for high performance and versatility, this next-gen battery is ideal for homes and properties looking to maximise energy independence with safe, long-lasting lithium storage.

Key Features:

• Large Capacity: With 10.24kWh of usable energy, the Powerbox Pro is well-suited for whole-home backup, solar storage, or high-demand off-grid systems.
• Smart Design: Sleek and compact with IP65 protection, it can be installed indoors or outdoors, either wall-mounted or floor-standing, to suit your space.
• Flexible Expansion: Scale your storage with up to 5 units in parallel—offering up to 51.2kWh of total capacity.
• Advanced LFP Chemistry: Built using reliable lithium iron phosphate (LiFePO4) technology for safety, thermal stability, and an extended cycle life of 6000+ cycles.
• Smart BMS & Monitoring: Integrated Battery Management System for optimal performance and optional app monitoring with real-time updates and remote firmware upgrades.

Applications:

• Solar Energy Storage: Perfect for storing daytime solar energy for nighttime use or cloudy conditions.
• Hybrid Systems: Seamlessly works with leading hybrid inverters from brands like Deye, Victron, Goodwe, and more.
• Off-Grid Power: Reliable power source for cabins, tiny homes, rural properties, and more.
• Expandable Home Energy Storage: Stack more units as your power needs grow.

Benefits:

• Safe & Reliable: LFP chemistry and multiple layers of protection guard against overcharge, over-discharge, overheating, and short circuits.
• Durable Construction: IP65-rated for harsh environments and built to last with over 6000 cycles at 90% depth of discharge.
• Simple Installation: Compact footprint and versatile mounting options make it easy to integrate into new or existing setups.
• Compatible with Top Inverter Brands: Works with SMA, Victron, Deye, Goodwe, Voltronic, and more.

Technical Specifications:

• Battery Chemistry: LiFePO4
• Capacity: 200Ah
• Energy: 10.24kWh
• Nominal Voltage: 51.2V
• Operating Voltage: 44.8 – 57.6V
• Nominal Power: 5.12kW
• Peak Power: 10.24kW
• Charge/Discharge Current: 100A recommended
• DOD: 90%
• Cycle Life: ≥6000 cycles
• Weight: 103kg
• Dimensions (W/D/H): 555 × 210 × 928 mm
• Operating Temp: -10°C to 50°C
• Protection Rating: IP65
• Expansion: Up to 5 units in parallel
• Communications: CAN/RS485/RS232
• Certifications: CEC Accredited, UKCA
• Compatible Inverters: SMA, Victron, Deye, Goodwe, Solis, Sungrow, SAJ, Voltronic, and more

Future-proof your energy storage with the Dyness Powerbox Pro—a powerful, safe, and scalable solution for any modern energy system.
