Deye 12kW Single Phase Hybrid Inverter | SUN-12K-SG02LP1-AU
Deye 12kW Hybrid Inverter for off-grid and hybrid solar systems. Features 3 MPPTs, up to 24kW PV access, 290A battery charging, generator support, and parallel expansion up to 16 units.

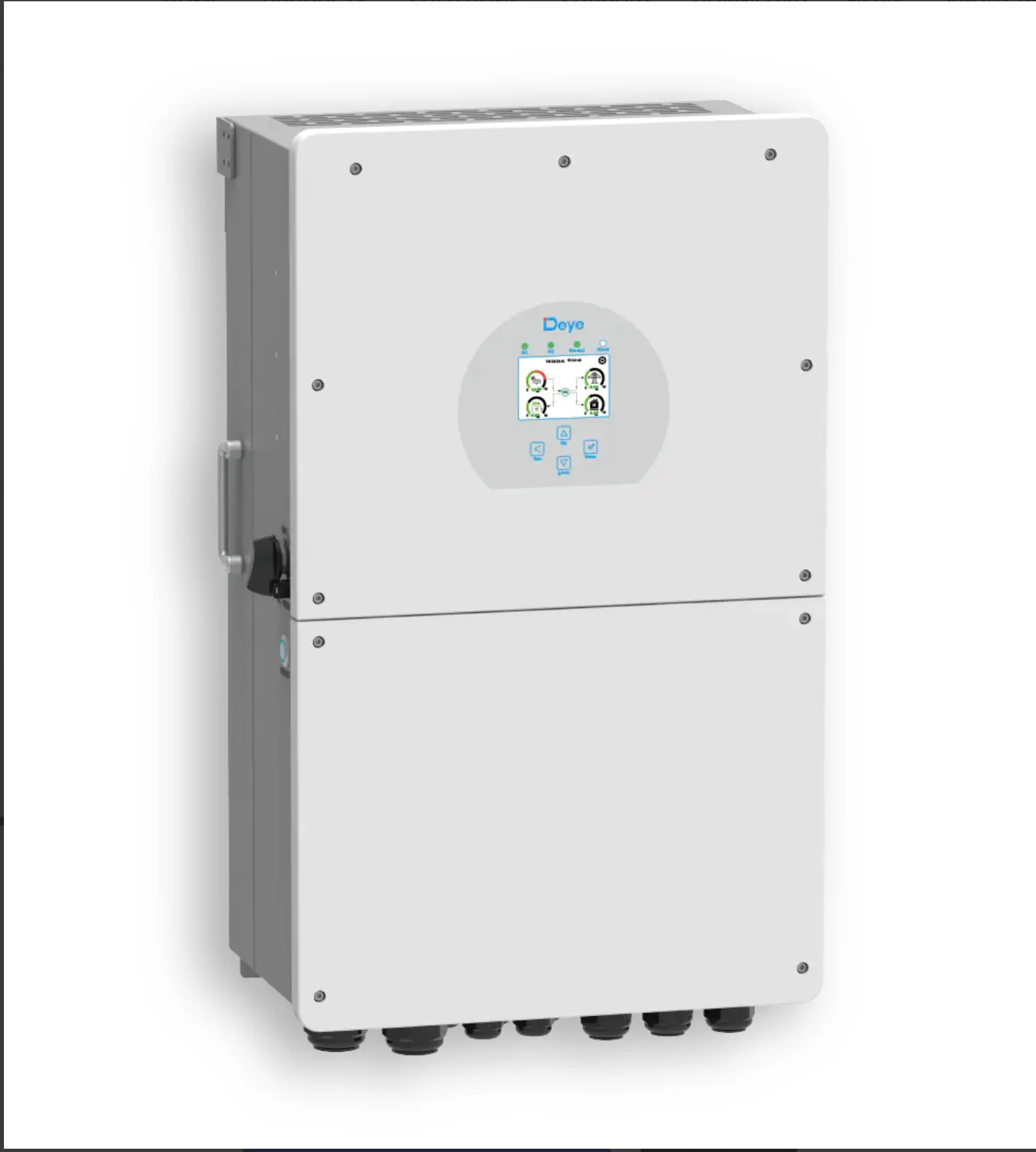

Deye 12kW Single Phase Hybrid Inverter SUN-12K-SG02LP1-AU
The Deye 12kW Single Phase Hybrid Solar Inverter is a high-performance energy solution designed for large off-grid and hybrid solar systems. Ideal for homes, farms, workshops, commercial sites, and remote properties, it delivers powerful 12kW output with advanced battery integration and high solar input capacity for dependable day and night operation.
Supporting both lithium-ion and lead-acid batteries, this inverter also features generator charging, AC coupling capability, and parallel operation of up to 16 units, making it perfect for customers planning scalable and future-ready energy systems.
Best Suited For:
- Large off-grid homes and residential properties
- Farms, sheds, workshops, and commercial sites
- Hybrid systems with battery backup
- Customers requiring generator integration
- Expandable systems with future growth in mind
- Retrofit solar systems needing AC coupling
Key Benefits:
- Powerful 12kW output for running larger loads and appliances
- Up to 24,000W PV access power for substantial solar array capacity
- 290A max charge and discharge current for fast high-capacity battery charging
- 3 MPPTs with 2+2+2 string configuration for flexible solar panel layouts
- Generator charging support for additional backup reliability
- AC coupling capability for integrating with existing solar systems
- Parallel support for up to 16 units for large-scale installations
- IP65 weather protection for indoor or outdoor installation
- Touch LCD display for easy configuration and monitoring
- WiFi, RS485, and CAN communication for smart monitoring and battery compatibility
Technical Specifications:
| Model | SUN-12K-SG02LP1-AU |
| Battery Type | Lead-acid or Lithium-ion |
| Battery Voltage Range | 40–60V |
| Max Charge Current | 290A |
| Max Discharge Current | 290A |
| Max PV Access Power | 24,000W |
| Max PV Input Power | 18,000W |
| Max PV Input Voltage | 500V |
| Start-up Voltage | 125V |
| MPPT Voltage Range | 150–425V |
| MPPTs / Strings | 3 MPPT / (2+2+2) |
| Rated AC Output Power | 12,000W |
| Rated AC Output Current | 52.2A |
| Max AC Passthrough | 70A |
| Peak Off-Grid Power | 2× rated power for 10 seconds |
| Max Efficiency | 97.6% |
| Protection Rating | IP65 |
| Cooling | Intelligent Air Cooling |
| Communication | WiFi, RS485, CAN |
| Operating Temperature | -40°C to +60°C |
| Noise Level | <45dB |
| Dimensions | 420 × 670 × 233 mm |
| Weight | 35.6 kg |
| Warranty | 10 Years |
| Grid Regulation | AS/NZS 4777.2 |
| Safety Standards | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
Why Choose This Inverter?
The Deye 12kW Single Phase Hybrid Inverter is designed for customers who need serious power capacity, flexible battery integration, and long-term expandability. With high solar input, fast battery charging, generator support, and scalable parallel capability, it provides a reliable and future-ready solution for energy independence in demanding residential and commercial applications.
