48V EVE 280Ah 14.34kWh LiFePO4 Battery Pack Kit with 200A Smart BMS

This LiFePO4 battery (48V / 51.2V, 280Ah, 14.34kWh) is built for high-capacity off-grid solar and backup power installations, providing stable lithium performance, enhanced safety, and long-term reliability over lead-acid alternatives.

48V EVE 280Ah 14.34kWh LiFePO4 Battery Pack Kit with 200A Smart BMS

5 Year Warranty on Cells
3 Year Warranty on BMS

This Battery Pack is a 48Volt (51.2V) 280 (Ah) Amp Hour, 14.34 (KWh) Kilo Watt Hour.

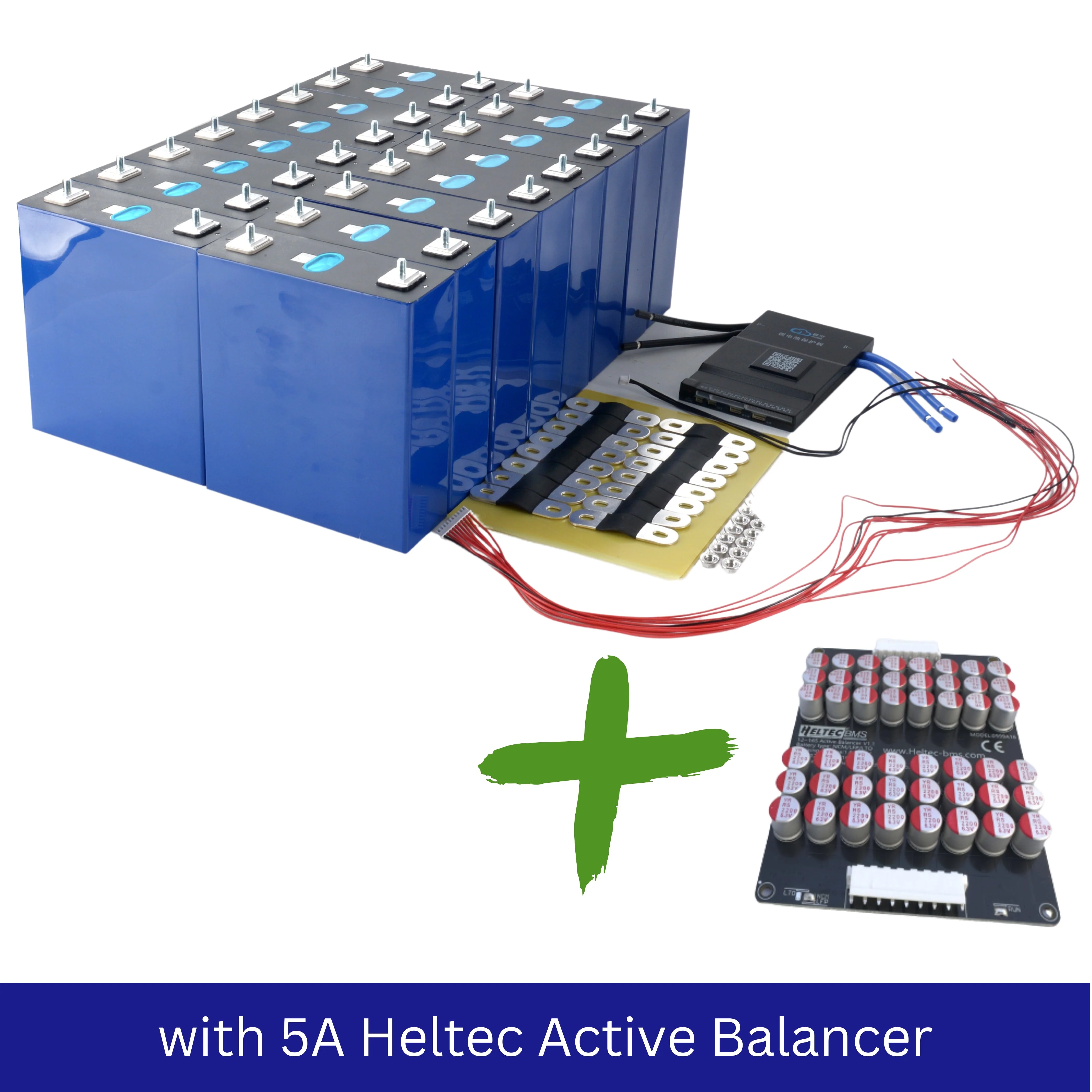

This is a kit made up of:

• 16 x 3.2v LiFePO4 EVE 280ah cells (Either Auto or Solar Grade)
• 1 x 200Amp 8S~24S JK BMS with 2A Active Balancer

Plus:

• 1 x 16S BMS cable
• 12 x Copper Bus Bars
• 32 x 6M nuts

Extras:

• 5A Parallel Module (Optional Extra)
• 5A Heltec Active Balancer

Total Dimensions is approximately 173.5w x 209h x 1152d (mm)
Dimensions for each cell is: 173.5w x 209h x 72.0d (mm)

Total Weight: 88kg
Each cell is 5.49kg

These are Brand New genuine matched cells. Do not be fooled by cheap recycled cells. What is the different between Solar Grade and Auto Grade cells?

This kit is perfect for building your own power bank for caravans, RV's, Motorhomes or Off Grid Houses. LiFePO4 are around half the weight as AGM or Lead Acid batteries with higher charge cycles.  They are also more stable than other Lithium Iron (Li-ion) batteries.

Please Note: Make sure you use a BMS (Battery Management System) with temperature sensor when connecting in series to ensure safety and longevity.

We also have 12V, 24V & 36V Packages available

What is a Parallel Module?

What is an Active Balancer Module?

Before working with LiFePO4 cells please read our Product Safety Disclaimer
