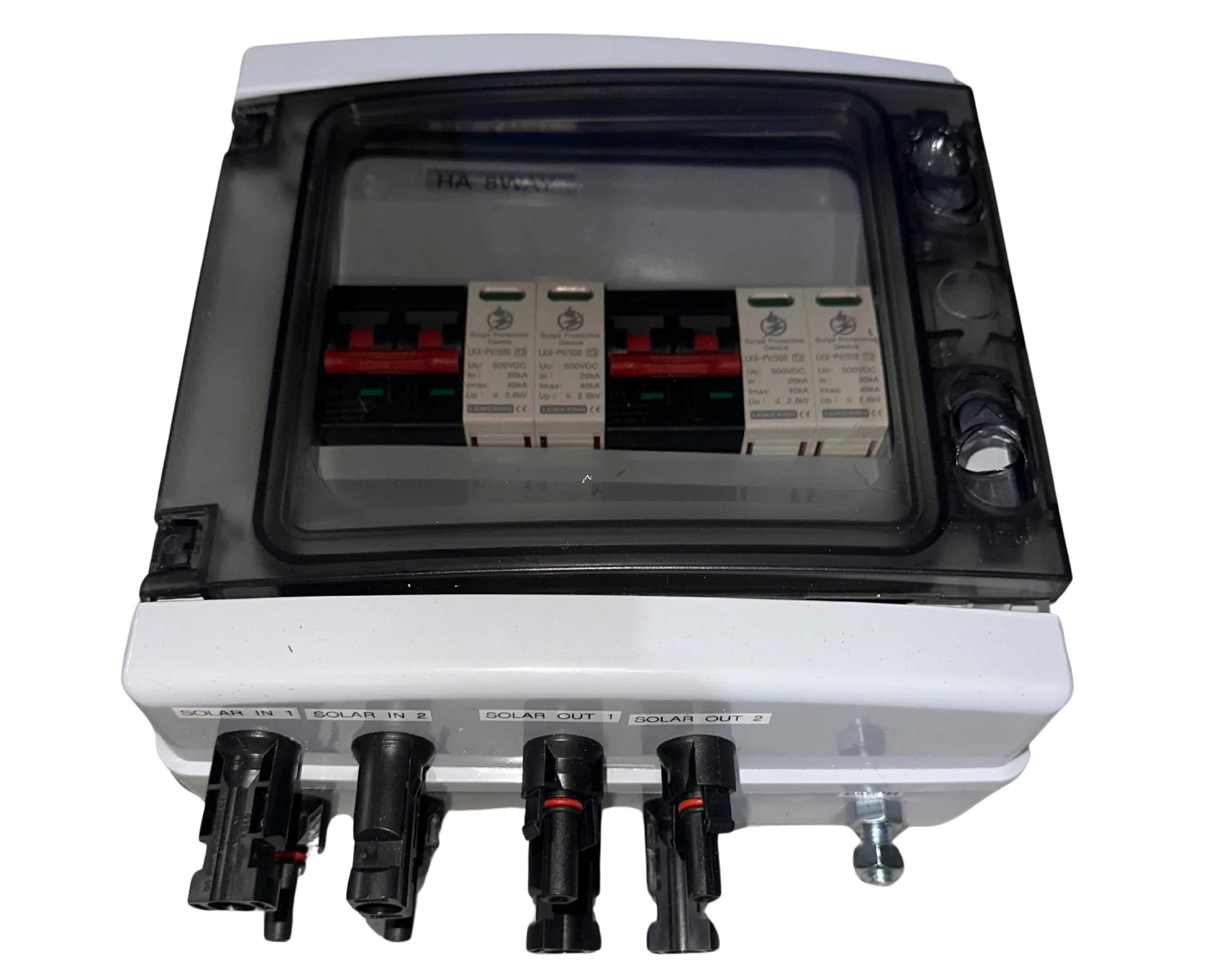

2 Array Solar Combiner Box – Dual 500V Input & Output with Surge Protection (IP65 Rated)

2 Array Solar Combiner Box – Dual 500V Inputs & Outputs with Surge Protection (IP65 Rated)

The 2 Array Combiner Box is built for reliability, safety, and simplicity in off-grid solar installations. Designed with 2 array inputs and 2 array outputs, it allows you to connect two independent solar strings (up to 500VDC and under 15A each) and feed them directly to your inverter or solar charge controller.

With built-in circuit protection and surge suppression, this combiner box ensures your off-grid system remains safe, organized, and efficient — even in harsh outdoor conditions.

---

⚡ Key Features

• Dual Input & Output Design: Supports 2 x solar arrays (up to 500VDC, 15A each) with 2 independent outputs for flexible system setups.
• IP65 Rated Enclosure: Fully sealed, dustproof and water-resistant housing designed for outdoor installation in tough Australian conditions.
• Superior Protection: Features 2 x 25A DC circuit breakers and 2 x 500VDC surge protectors rated at 20kA (Imax 40kA, UP < 2.6kV) to safeguard your system from overloads and voltage spikes.
• Simplified Plug-and-Play Setup: Reduces wiring complexity, making it easy to connect solar panels to inverters or charge controllers.
• Durable & Safe: Built with premium materials to provide long-lasting performance and electrical safety compliance.

---

✅ Specifications

Parameter	Specification
Input Arrays	2 (up to 500VDC, <15A each)
Output Arrays	2 (up to 500VDC, <15A each)
Circuit Breakers	2 x 25A DC
Surge Protectors	2 x 500VDC, 20kA, Imax 40kA, UP < 2.6kV
Casing	IP65 weatherproof, dustproof, UV-resistant enclosure
Application	Off-grid solar systems, RVs, tiny homes, cabins, and remote power setups

---

Simplify your solar installation with confidence.
The 2 Array Solar Combiner Box (IP65 Rated) makes it easy to connect and protect dual solar arrays — ensuring safe, efficient, and weatherproof performance in any environment.
